The iPad Pro 2020 11-inch has a powerful front camera that is essential for FaceTime, video calls, selfies, and Face ID. Over time, the front camera can stop working due to physical damage, water exposure, or internal failure. When the front camera stops functioning, your device becomes less useful for video calls and Face ID, and it can also affect apps that rely on the front camera.

In this guide, we will walk you through the complete process of replacing the front camera on the iPad Pro 2020 11-inch. This repair requires careful handling because the screen is glued tightly to the body and multiple flex cables are connected to the logic board. Proper heating and patience are the keys to a successful repair.

---

Repair Difficulty

Difficulty Level: Medium
Estimated Time: 45–60 minutes

⚠️ Important: Always work on a clean surface and keep screws organized. Avoid damaging the screen or connectors.

---

Reasons for Front Camera Replacement

You may need to replace the front camera if you experience:

• Front camera not detected
• Camera app showing black screen
• Blurry or distorted video
• Camera not focusing
• Face ID not working
• Water damage to the front camera
• Front camera glass cracked

---

Before You Begin

Compatibility and Model Numbers

Required Tools

• Heating pad / heat gun / hairdryer
• Suction cup
• Plastic card pry tools / opening picks/ Tweezers
• Phillips screwdriver #00 / #000
• Torx T3 Screwdriver
• Adhesive (B7000 or double-sided back cover adhesive)
• Bonding clips or rubber bands (optional but recommended)

Make sure the phone is turned off and the SIM tray is removed (For Cellular Version)before starting.

How to Find Tools and Parts

• Heating pad – https://amzn.to/3H0tHzJ
• Portable Heat Gun – https://amzn.to/4mszih1
• Clamps https://amzn.to/3GYJT4w
• STREBITO 142 Piece Repair Tool Kit https://amzn.to/3UO1jUx
• Glue | Adhesive https://amzn.to/46exVxe
• Compatible Parts –
  • Battery – https://amzn.to/4fL7BOj
  • LCD Screen – https://amzn.to/4fUN75V
  • Other Parts – https://amzn.to/4mAuYN6
• Silicone Work Repair Mat https://amzn.to/45Emz5l

Protect Your iPad Pro

• Protector For The Screen https://amzn.to/3Uyi5XP
• Best Cases For Your iPhone https://amzn.to/41cQT4x

---

Step-by-Step Front Camera Replacement

Step 1: Power Off the iPad

Turn off the iPad completely before starting the repair.

---

Step 2: Heat the Front Screen

Heating is the most important part of iPad repair.
Use a heating pad or heat gun to soften the adhesive around the screen.

• Heat the front side only
• Select tablet heating mode
• Heat for 3–5 minutes

---

Step 3: Lift the Screen with a Suction Cup

Use a suction cup on the edge to lift the screen slightly and create a gap.
Insert plastic pry tools and slowly cut through the adhesive around the screen.

---

Step 4: Remove the Shield

Once the screen is lifted, carefully pull the screen up and slide down to remove the shield.
Remove two screws and take off the shield.

---

Step 5: Disconnect the Top Cable

The top cable is short, so be extra careful while removing it.
Disconnect the connector gently using a plastic spudger.

---

Step 6: Remove the Screen Assembly

Open the screen at 90 degrees like opening a book.
Remove three screws and the shield.
Disconnect four connectors to fully remove the screen assembly.

---

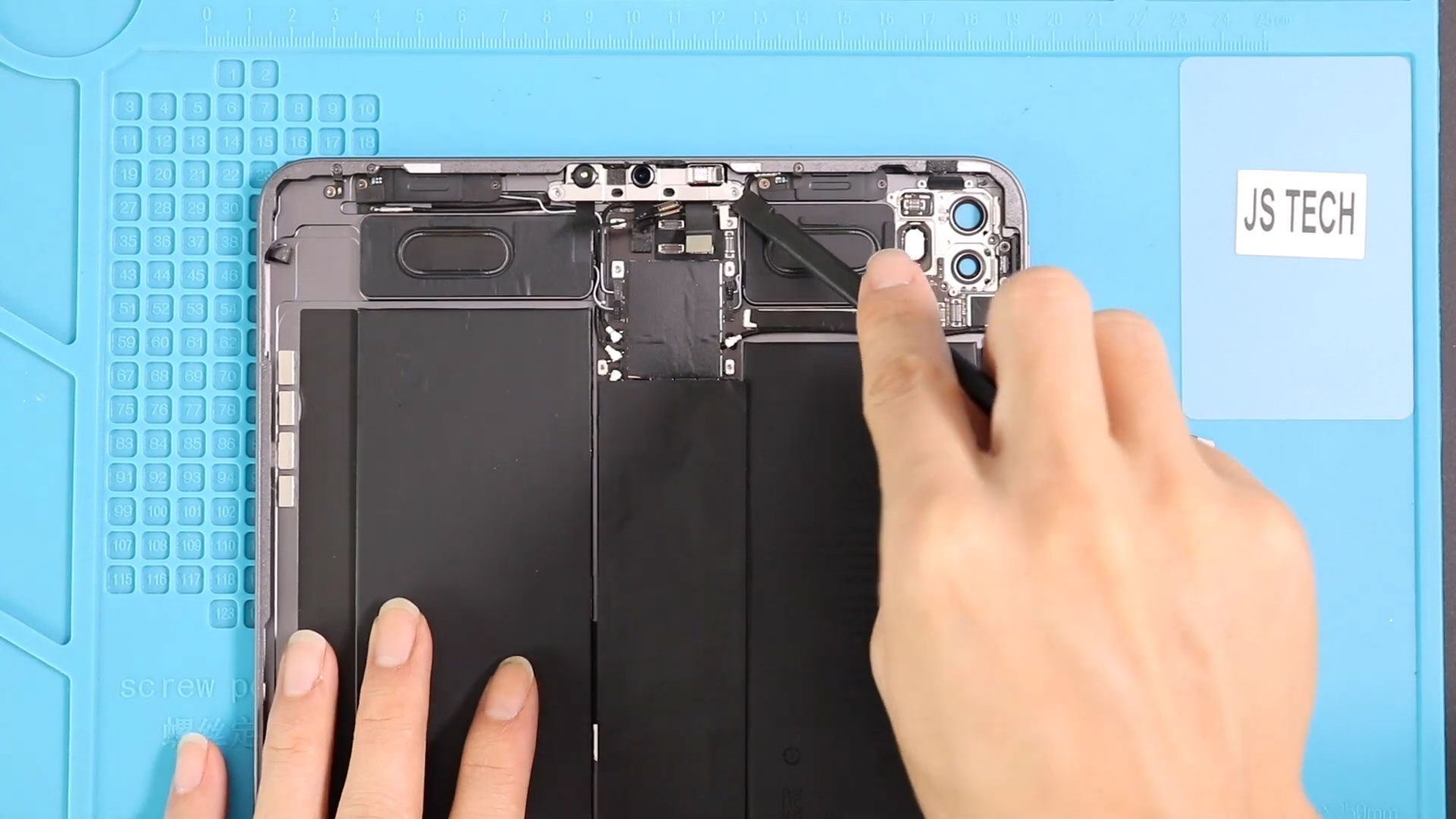

Step 7: Remove the Front Camera Bracket

Remove the bracket by undoing four screws.

---

Step 8: Remove the Faulty Front Camera

Remove two screws and disconnect three connector plugs.
Remove the damaged or non-working front camera carefully.

---

Step 9: Install the New Front Camera

Place the new front camera into the body.
Reconnect the three connector plugs and secure the camera with two screws.

⚠️ Note: Replacing the front camera will not always fix Face ID issues. In some cases, Face ID may be lost or require additional calibration.

---

Step 10: Reinstall the Bracket

Place the bracket back and secure it with four screws.

---

Step 11: Reconnect the Screen

Reconnect the LCD and touch connectors.
Add the shield and secure with three screws.

---

Step 12: Secure the Top Connector

Close the screen at a 45-degree angle like closing a book.
Slide the screen down and connect the top connector to the logic board.
Secure the shield with two screws.

---

Step 13: Close the iPad

To clamp the iPad back together:

• Insert the top section first
• Then press the sides and bottom simultaneously
• Apply pressure around the edges to secure the screen

---

FAQs

Q1: Can I replace the front camera at home?
A: Yes, but it requires careful handling. If you are not confident, seek professional repair.

Q2: Will I lose my data during the repair?
A: No. Replacing the front camera does not affect your data. However, it’s recommended to backup before starting.

Q3: Does front camera replacement affect Face ID?
A: Face ID may not work after replacement. In some cases, you may lose Face ID and require additional repair.

Q4: How long does the front camera replacement take?
A: Usually 45–60 minutes, depending on your experience.

---

Troubleshooting (After The Repair)

Q1: Front camera still not working after replacement
A: Check the camera connector and ensure it is fully seated. Reconnect the connector and test again.

Q2: Camera app shows black screen
A: Ensure the front camera module is properly installed and connected. Check for loose connectors and clean them gently.

Q3: Face ID not working after replacement
A: Replacing the front camera may not fix Face ID. Face ID uses a separate Face ID sensor and requires proper calibration. You may need a full Face ID sensor replacement.

Q4: Camera works but video quality is poor
A: Check if the camera lens is clean. If the issue continues, the replacement camera may be faulty.
