Samsung Galaxy A16 5G Back Cover & Camera Lens Frame Replacement Guide | DIY Repair

In today’s repair tutorial, we’ll be showing you how to replace the back cover and the camera lens frame on the Samsung Galaxy A16 5G. This repair is one of the simpler ones on this model because you don’t need to remove the mid-frame. All the work is done from the outside, making it a quick and beginner-friendly fix.

Before starting, make sure you have the proper tools ready. You will need opening tools, a suction cup, a heating source, and optionally B7000 glue or a new adhesive frame. All tools we use are listed in the description.

---

Compatibility and Model Numbers

This repair guide based on Samsung Galaxy A16 5G mobile phone, but it is also compatible with Galaxy A16 4g model too.

Compatible Mode Numbers l SM-A166B, SM-A166B/DS, SM-A166P, SM-A166P/DS, SM-A166E, SM-A166E/DS, SM-A166W, SM-A166U, SM-A166U1, SM-A165F, SM-A165F/DS, SM-A165M, SM-A165M/DS, SM-A165F/DSB

Tools You Need

• Heating pad / heat gun / hairdryer
• Suction cup
• Plastic card pry tools / opening picks
• Phillips PH00 screwdriver
• Adhesive (B7000 or double-sided back cover adhesive)
• Bonding clips or rubber bands (optional but recommended)

Learn How to Safely Remove the Back Cover Using Heating Pad

How to Find Tools and Parts

• Heating pad – https://amzn.to/3H0tHzJ
• Portable Heat Gun – https://amzn.to/4mszih1
• Clamps https://amzn.to/3GYJT4w
• STREBITO 142 Piece Repair Tool Kit https://amzn.to/3UO1jUx
• Glue | Adhesive https://amzn.to/46exVxe
• Compatible Parts https://amzn.to/4pOwJIM
• Silicone Work Repair Mat https://amzn.to/45Emz5l

---

Step 1 – Turn Off the Phone and Remove the SIM Tray

Start by powering off the Samsung Galaxy A16 5G completely.
Then remove the SIM tray using the ejector tool. This prevents accidental damage when lifting the back cover.

---

Step 2 – Heat the Back Cover

The back cover is secured with strong adhesive, so proper heating is essential.

If you are using a heating pad, place the phone with the back cover facing down on the pad and select the Mobile Phone Heating option. Allow it to heat until the cycle is completed.

If using a heat gun or hairdryer, move the tool around all edges evenly.
Avoid holding heat in one place too long—slow, even heating prevents warping or damage.

---

Step 3 – Create a Gap and Release the Adhesive

Once the adhesive softens, place a suction cup at the bottom area of the back cover.
Lift gently to create a small separation.

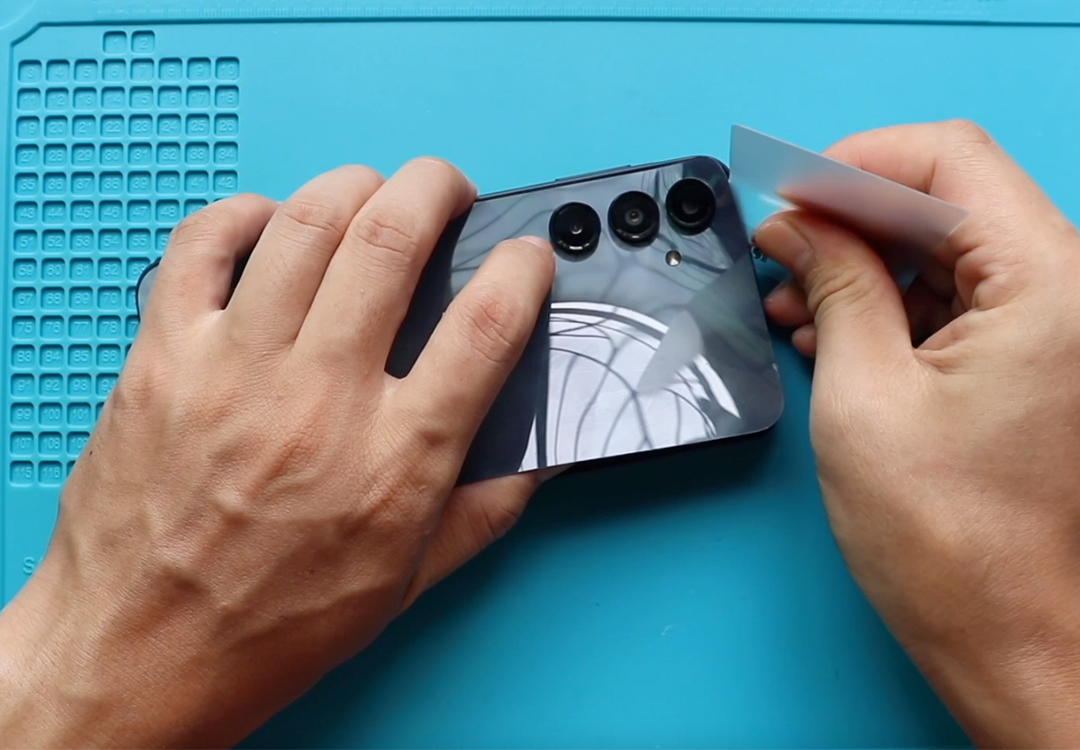

Insert a plastic pry card into the gap.
Slide the card slowly around the edges to cut through the adhesive.
Take your time here—work carefully to avoid bending the back cover or damaging side flex cables.

Always use the tip of your tool to loosen the adhesive layer and proceed around the entire frame.

---

Step 4 – Remove the Back Cover

After all edges are free, gently lift the back cover and set it aside.
At this stage, ensure no adhesive strings are left attached to the frame.

---

Step 5 – Remove the Camera Lens Frame

The camera lens frame is also held in place with adhesive.

Apply mild heat around the camera section of the back cover.
Once the glue softens, use a plastic tool to lift and remove the old lens frame.

Be careful around the lens openings to avoid scratching the back cover.

---

Step 6 – Install the New Camera Lens Frame

Take the replacement camera lens frame and align it properly with the cutouts on the back cover.

Press it gently so it sits firmly and evenly.
Some replacement parts come already attached to a new back cover, which is also an option if your back panel is cracked or heavily scratched.

---

Step 7 – Prepare the Back Cover for Installation

Before reinstalling the back cover onto the phone, make sure there is enough adhesive.

You can use:

• B7000 glue, or
• A new double-sided back cover adhesive

Apply adhesive around the edges evenly to ensure a strong bond once the cover is placed.

Use These Essential Tools to Secure the Back Cover

---

Step 8 – Install and Bond the Back Cover

Place the back cover onto the phone and press it gently into position.

Use bonding clips to secure the cover while the glue cures.
If you don’t have bonding clips, rubber bands work well to apply even pressure around the edges.

Leave them for some time to ensure proper bonding and alignment.

---

Your Samsung Galaxy A16 5G back cover and camera lens frame replacement is now complete!

If you have any questions, feel free to leave a comment. And don’t forget to like, share, and subscribe for more GEARDO repair guides.

Frequently Asked Questions

1. Do I need to remove the mid-frame to replace the back cover or camera lens?

No. For the Galaxy A16 5G, both the back cover and lens frame can be replaced externally.

2. Can I reuse the old adhesive?

It’s possible, but not recommended. Fresh adhesive ensures better bonding and prevents gaps.

3. Can I install the camera lens without heating?

Heating makes the process much safer. Without heat, you risk cracking the back cover or damaging the lens.

4. Is B7000 glue safe for the back cover?

Yes, it’s commonly used and provides a flexible yet strong seal.

5. How long should I leave the bonding clips on?

Anywhere between 30 minutes to a few hours works well, depending on glue strength.
