iPhone 12 Mini Battery Replacement Guide | Step-by-Step DIY Repair

Hi everyone, welcome back to Geardo!
In today’s repair guide, we’re walking you through the complete process of replacing the battery on the iPhone 12 Mini. If your phone is draining quickly, shutting down early, or showing “Service” battery status, this tutorial will help you fix it at home with the proper tools.

Before we begin, make sure you have all the necessary tools ready. You’ll find the full tool list in the video description or on our website. Having everything prepared beforehand will make the repair smoother and safer.

---

Compatibility and Model Numbers

This repair guide based on iPhone 12 mini mobile phone

Compatible Mode Numbers l A2399, A2176, A2402, A2400

Tools You Need

• Heating pad / heat gun / hairdryer
• Suction cup
• Plastic card pry tools / opening picks
• Phillips PH000 screwdriver
• Pentalobe P2 Screwdriver (for bottom screws)
• Tri-Point Y000 Screwdriver
• Adhesive (B7000 or double-sided frame adhesive)
• Bonding clips or rubber bands (optional but recommended)

How to Find Tools and Parts

• Heating pad – https://amzn.to/3H0tHzJ
• Portable Heat Gun – https://amzn.to/4mszih1
• Clamps https://amzn.to/3GYJT4w
• STREBITO 142 Piece Repair Tool Kit https://amzn.to/3UO1jUx
• Glue | Adhesive https://amzn.to/46exVxe
• Compatible Parts https://amzn.to/47EPojr
• Silicone Work Repair Mat https://amzn.to/45Emz5l

---

Step 1 — Power Off the Device & Remove Bottom Screws

Start by switching off the iPhone completely.
Eject the SIM tray, then use a Pentalobe screwdriver to remove the two screws located next to the charging port. These screws secure the screen to the frame.

---

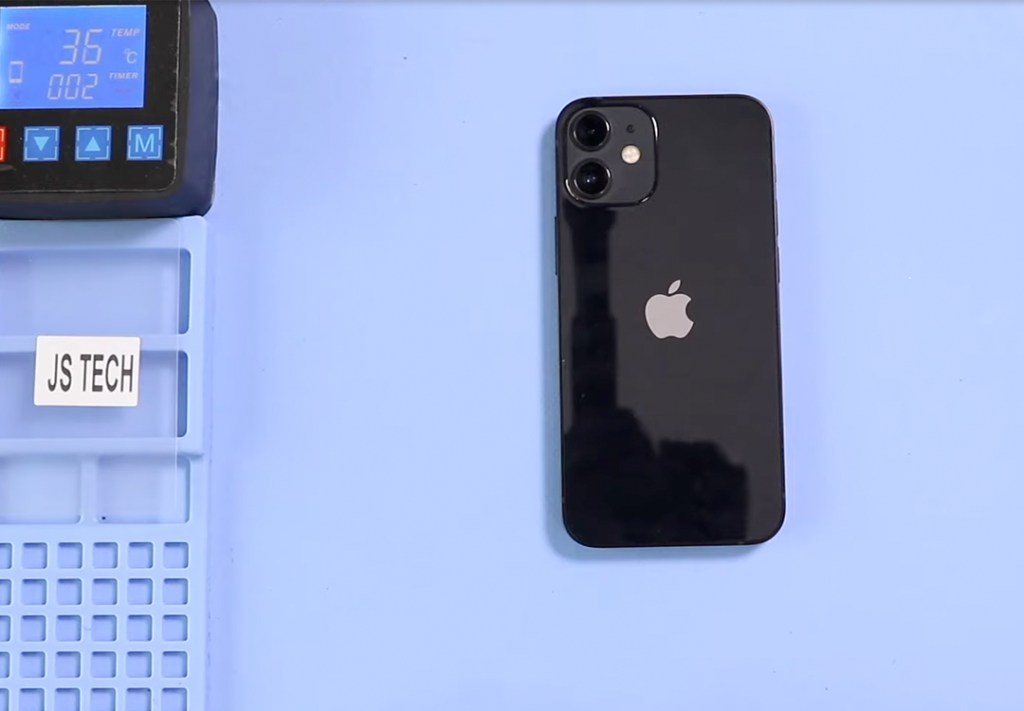

Step 2 — Loosen the Display Adhesive

To safely lift the screen, you must soften the adhesive around the edges.
We’re using a heating pad, but a heat gun or even a regular hairdryer will work fine. Apply moderate heat around the entire display for an even release.

Once warmed, use a double-sided suction cup to lift the front panel.
If you don’t have one, a regular suction cup plus a pry card or triangle picker will also do the job. Carefully slide around the corners to break the rubber gasket without damaging the internal flex cables.

---

Step 3 — Open the Phone Like a Book

After the adhesive starts loosening, gently lift the screen from the left side—like opening a book.
Remove the small shield and undo the battery connector first. This step ensures there is no power going to the boardduring the repair.

Next, move to the top area. Remove the five screws holding the metal bracket, then disconnect the display and earpiece flex cables. You can now completely separate the screen from the phone body.

---

Step 4 — Remove the Old Battery

The iPhone 12 Mini battery is held in place using strong stretch adhesive strips.
There are usually three pull tabs at the bottom of the battery. Slowly pull each strip out at a low angle. If a strip snaps — don’t worry — it happens often, especially if the phone was previously repaired.

If any adhesive remains stuck, use a plastic pry tool to gently lift the battery.
Avoid using metal tools to prevent damage to the logic board or frame.

Once free, take the old battery out and clean any leftover adhesive from the frame.

---

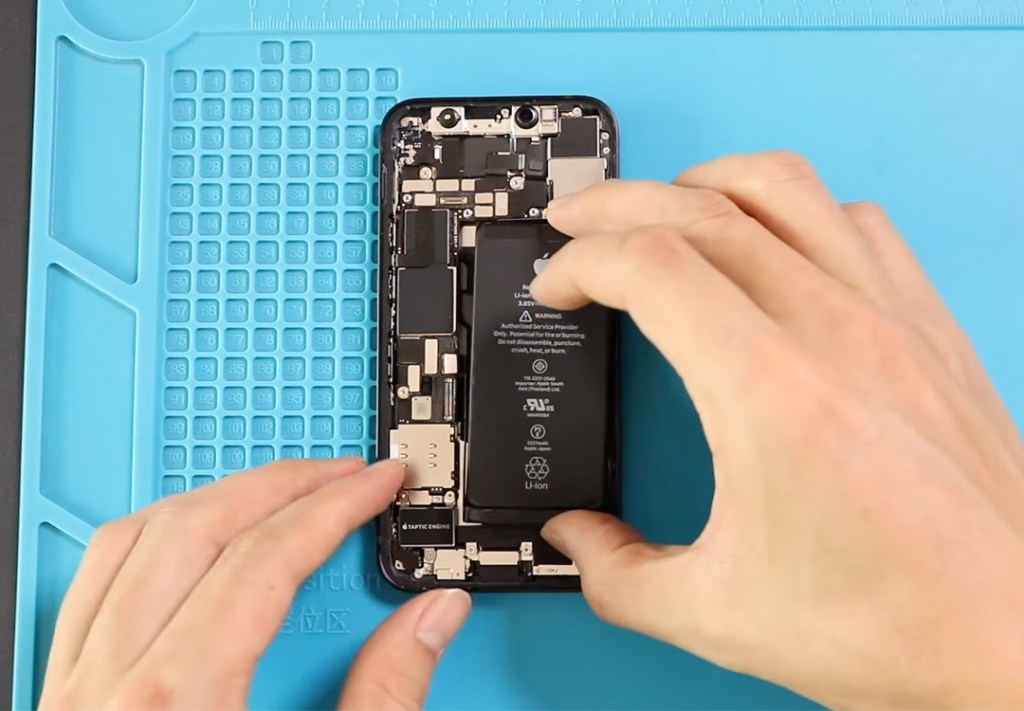

Step 5 — Install the New Battery

Apply new adhesive strips or use a pre-cut battery tape to secure the replacement battery.
Place the new battery firmly into position and ensure it sits flush without pressure on the flex cable.

---

Step 6 — Reconnect the Screen Assembly

Bring the display back and start reconnecting the components:

• Earpiece assembly plug
• LCD connector
• Battery connector

Secure all shields with their original screws. Make sure every bracket is aligned properly — incorrect placement can cause no-display issues.

---

Step 7 — Close the Phone

Before sealing, check that no cables are pinched and no screws are missing.

To close:

1. Align the top section of the screen first.
2. Press along the sides.
3. Snap in the bottom edge last.

Then reinstall the SIM tray and tighten the two Pentalobe screws at the bottom.

---

Final Check

Power on the device to ensure:

• Display works
• Touch is responsive
• Battery percentage shows normally
• No warnings appear

You are all set!

Hope you enjoyed this iPhone 12 Mini battery replacement guide. If you have any questions, feel free to comment on our video. Don’t forget to like, share, and subscribe to Geardo for more repair tutorials!

---

FAQs

1. Does replacing the battery erase my data?

No. A battery replacement does not affect your data. Still, backing up is always recommended.

2. Why do the adhesive strips keep breaking?

Older devices or previously repaired phones often have weaker adhesive strips, causing them to snap during removal.

3. Do I need waterproof adhesive after the repair?

It helps restore some water resistance, but the phone will never be fully waterproof after opening.

4. How long does an iPhone 12 Mini battery last after replacement?

With a high-quality replacement, you should get similar life to a new device — around 1–2 days depending on usage.

5. Can I use third-party batteries?

Yes, but you may see a “Battery Service” notification. Performance is usually fine if the battery is good quality.
