Microsoft Surface Pro 5 (2017) Battery Replacement Guide
Hi everyone, welcome back to DIYGeardo 👋
Today, we will show you how to replace the battery on the Microsoft Surface Pro 5 tablet. If your tablet is not holding a charge, shuts down unexpectedly, or the battery drains quickly, replacing the battery is the solution.
Before starting, make sure you have the right tools, which you can find in the description.
Tools Required
- Heating pad / heat gun / hairdryer
- Suction cup
- Plastic card pry tools / opening picks
- Phillips #000 / #00 screwdriver
- Torx T3, T4, T5 Screwdriver
- Tri-Point Y0 / Y000 Screwdriver – Occasionally for specialized internal screws.
- Adhesive (B7000 or double-sided frame adhesive)
- Bonding clips or rubber bands (optional but recommended)
How to Find Tools and Parts
- Heating pad – https://amzn.to/3H0tHzJ
- Portable Heat Gun – https://amzn.to/4mszih1
- Clamps https://amzn.to/3GYJT4w
- STREBITO 142 Piece Repair Tool Kit https://amzn.to/3UO1jUx
- Glue | Adhesive https://amzn.to/46exVxe
- Compatible Parts https://amzn.to/3Jy3Srx
- Silicone Work Repair Mat https://amzn.to/45Emz5l
Step-by-Step Battery Replacement
Step 1: Heat the Front Screen
- Place the tablet front side down on the heating pad
- Select the Tablet Heating option and let it complete
- Alternatively, use a heat gun or hairdryer with even, gentle heat
Proper heating softens the adhesive and prevents screen cracking.
Step 2: Lift and Remove the Screen
- Use a suction cup on the edge to lift the screen slightly
- Insert plastic pry tools or triangle picks to carefully cut the adhesive around the frame
- Work slowly and be gentle, as flex cables are attached to the logic board
Step 3: Disconnect Display Flex Cables
- Flip the screen open to 90 degrees
- Remove small connector shields using a pry tool
- Disconnect the LCD video connector
- Disconnect the touch screen connectors
Quick note: In some devices, shields may be missing due to previous repairs, but normally they should be in place.
Step 4: Remove Heat Sink and Shields
- Remove the shield on top of the heat sink using a pry tool
- Undo nine screws securing the heat sink
- Carefully lift and remove the heat sink
Step 5: Remove Logic Board
- Remove four small shields to access screws underneath
- Undo four screws to remove the WiFi bracket
- Disconnect nine plugs on the board (left-hand side)
- Undo two screws and remove the right-hand speaker
- Undo eight more screws and disconnect the charging plug
- Carefully lift out the logic board
Step 6: Heat the Battery
- Apply heat on the rear side where the battery is located using the heating pad
- Softens the adhesive securing the battery
Step 7: Remove the Old Battery
- Use a plastic pry tool to gently lift the battery
- Cut through the adhesive at the bottom carefully

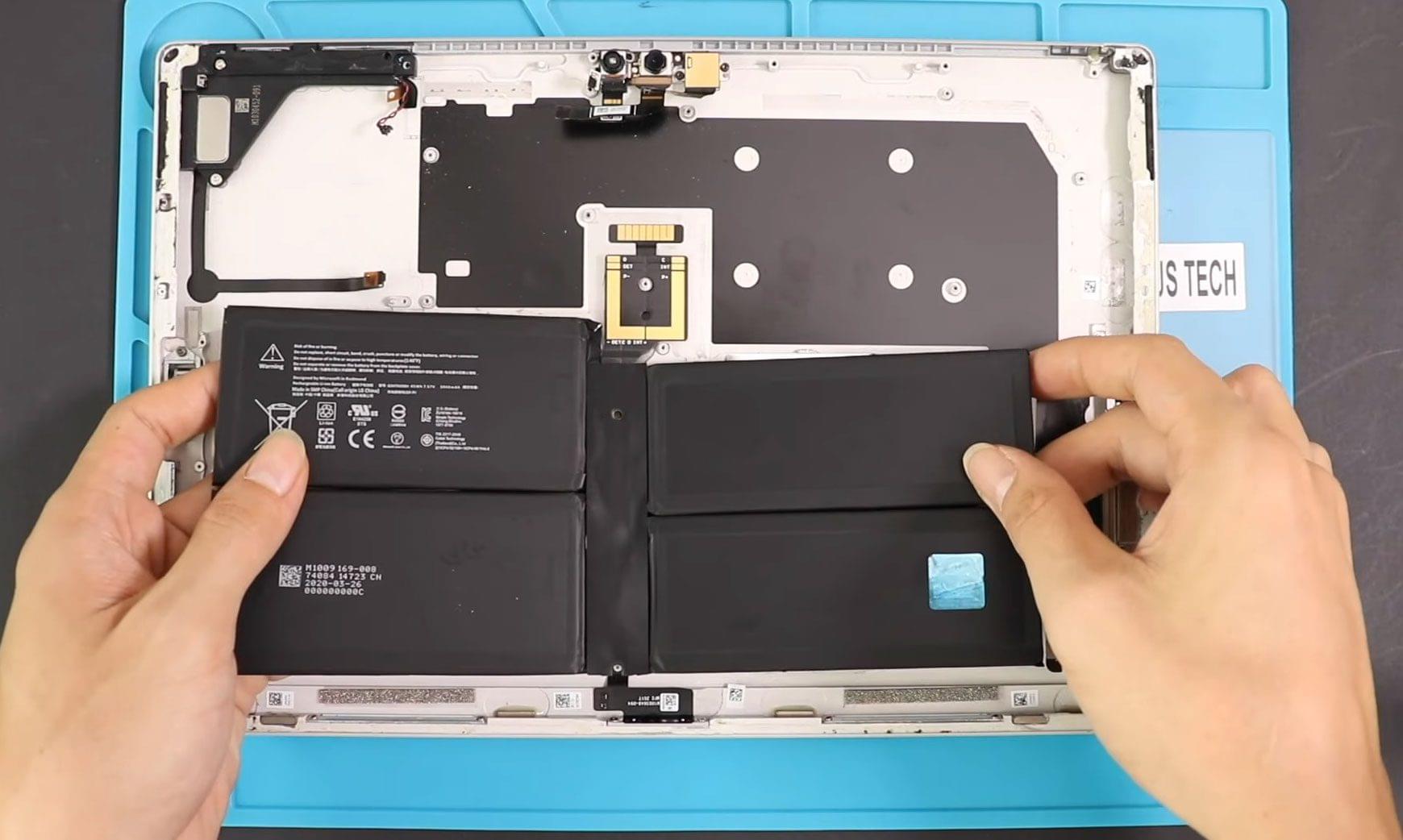

- Remove the battery completely from the body
⚠️ Be careful: Never puncture or bend the battery.
Step 8: Install the New Battery
- Remove protective tapes from the new battery
- Place the battery firmly in the body
- Ensure it sits flush and properly aligned
Step 9: Reinstall Logic Board
- Place the logic board back into position
- Connect all adapter plugs
- Secure the WiFi bracket with four screws
- Reinstall the shields on the logic board
- Place the heat sink back and secure it with seven screws
- Replace the heat sink shield
Step 10: Reinstall the Screen
- Check that the frame has enough adhesive; use B7000 glue or double-sided pre-cut adhesive if needed
- Connect the LCD video cable and touch screen connectors
- Reinstall shields on the board
- Slide the screen into the body starting from the top edge
- Align the bottom and press sides evenly
- Use screen bonding clips or rubber bands to secure the screen
- Leave it clamped for some time to allow the adhesive to cure
Final Checks
Before full use:
- Power on the tablet
- Verify charging functionality
- Check display and touch responsiveness
- Ensure no loose connectors or edges
Conclusion
You have successfully replaced the Microsoft Surface Pro 5 battery
If you have any questions, let us know in the comments. Please like, share, and subscribe to support Geardo for more DIY repair guides
FAQ
1. What are the signs of a failing Surface Pro 5 battery?
Common symptoms include fast battery drain, unexpected shutdowns, overheating, battery not charging fully, or the tablet powering off at high percentages.
2. Is the Surface Pro 5 battery replaceable?
Yes, but it is a complex repair. The battery is strongly glued and requires screen removal, logic board removal, and careful heating.
3. Do I need to remove the logic board to replace the battery?
Yes. The logic board must be removed to safely access and lift the battery from the body.
4. Is heating required to remove the battery?
Yes. The battery is secured with strong adhesive. Controlled heating is required to soften the glue and safely remove the battery without bending or puncturing it.
5. Is it dangerous to puncture the Surface Pro 5 battery?
Yes. Puncturing or bending the battery can cause overheating, smoke, or fire. Always use plastic tools and apply gentle, even heat.
6. Should I disconnect power before removing the battery?
Yes. Disconnecting all connectors and removing the logic board ensures the device is fully powered off and prevents short circuits during the repair.
7. Can I reuse the original battery adhesive?
No. Old adhesive loses strength. Use new battery adhesive or high-quality double-sided tape to secure the replacement battery properly.
8. Do I need special tools for battery replacement?
A tablet heating pad is highly recommended. Screen bonding clips help achieve a professional seal but are not mandatory.
