Samsung Galaxy A15 5G Volume Button Flex Replacement Guide

In today’s repair guide, we’re walking you through how to replace the volume button connector flex cable on the Samsung Galaxy A15 Series mobile phones.
Follow the steps carefully and make sure you have the proper tools listed in the description.

---

Compatibility and Model Numbers

This repair guide based on Samsung Galaxy A15 5G device, but it also compatible with Galaxy A15 4g and Galaxy M15 models.

Compatible Mode Numbersl SM-A156B, SM-A156B/DS, SM-A156P, SM-A156P/DS, SM-A156U, SM-A156U1, SM-A156U1/DS, SM-A156W, SM-A156P/N, SM-A156P/DSN, SM-S156VL, SM-A156M, SM-A156E, SM-A156E/DSN SM-A155F, SM-A155F/DSN, SM-A155M, SM-A155M/DS, SM-A155P, SM-A155R SM-M156B, SM-M156B/DS, SM-M156B/DSN

---

Before You Begin

Required Tools

• Heating pad / heat gun / hairdryer
• Suction cup
• Plastic card pry tools / opening picks
• Phillips screwdriver
• Adhesive (B7000 or double-sided back cover adhesive)
• Bonding clips or rubber bands (optional but recommended)

Make sure the phone is turned off and the SIM tray is removed before starting.

How to Find Tools and Parts

• Heating pad – https://amzn.to/3H0tHzJ
• Portable Heat Gun – https://amzn.to/4mszih1
• Clamps https://amzn.to/3GYJT4w
• STREBITO 142 Piece Repair Tool Kit https://amzn.to/3UO1jUx
• Glue | Adhesive https://amzn.to/46exVxe
• Compatible Parts https://amzn.to/4pOwJIM
• Silicone Work Repair Mat https://amzn.to/45Emz5l

👉 How to Use Tools for the Repair

---

Step 1 — Power Off & Prep the Device

Start by turning off the phone completely.
Remove the SIM tray before beginning any disassembly.

---

Step 2 — Remove the Back Cover

To safely open the device, you need to soften the adhesive around the back cover.

• If you’re using a heating pad, place the phone with the back cover facing down and select the Mobile Phone Heating mode.
  Let the cycle finish.
• If you don’t have a heating pad, a hairdryer or heat gun works fine.
  Heat gently around the edges — avoid overheating to prevent damage.

Now place a suction cup at the bottom area of the back cover to lift a small gap.
Slide a plastic pry card around the edges to cut through the adhesive.
Take your time and keep the tool flat to avoid damaging internal parts.

Once all adhesive is separated, lift off the back cover.

---

Step 3 — Remove the Mid-Frame

Confirm the SIM tray is removed.

Next:

1. Disconnect the fingerprint/power button flex connector.
2. Remove all 15 screws holding the mid-frame.
3. Use a plastic pry tool to gently unclip and lift the mid-frame from the body.
   Work slowly around the perimeter.

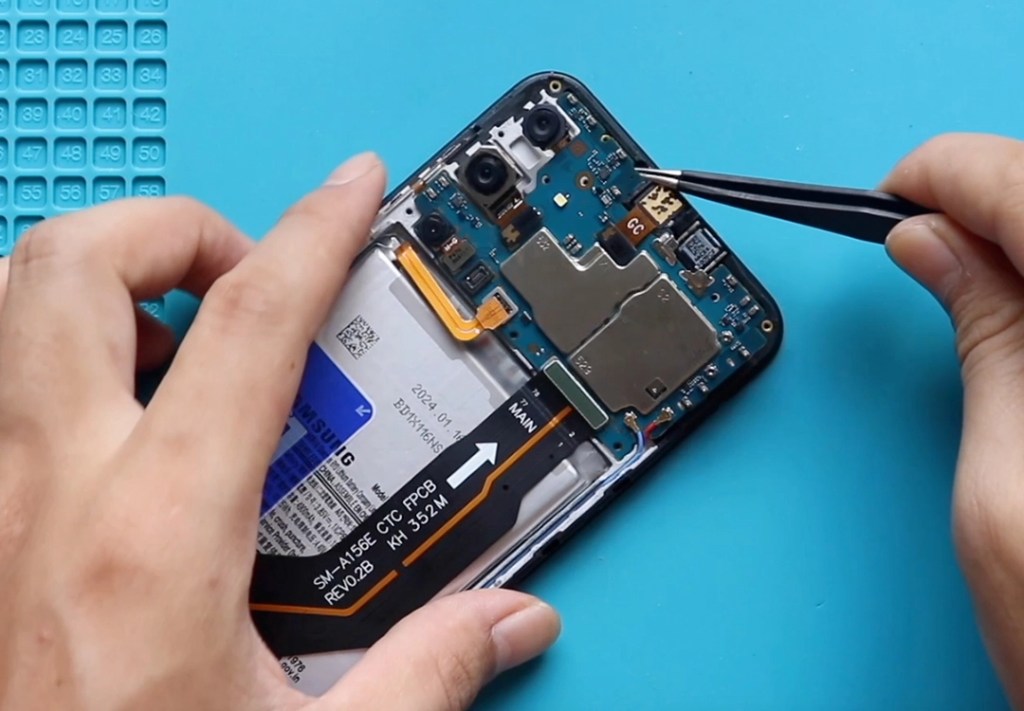

After removing the frame, disconnect the battery connector for safety.

Make sure the battery is disconnected before doing any other repairs

Change the Power Button Fingerprint Sensor

Replace the Galaxy A15 5G camera

How To Replace the Galaxy A15 5G New Battery

---

Step 4 — Remove the Faulty Volume Button Flex

The volume flex sits underneath the logic board area.

1. Remove the screw securing the logic board and gently lift it just enough for access.
2. Warm the volume flex area using a heat gun or hairdryer.
   This loosens the adhesive holding the flex cable.
3. Carefully pry and peel off the faulty volume button flex.

---

Step 5 — Install the New Flex Cable

Align the new volume flex and press it into place firmly so it adheres correctly.

Reinstall the logic board screw and reconnect the battery plug.

---

Step 6 — Reassemble the Phone

1. Place the mid-frame back onto the phone and ensure all clips are properly locked.
2. Insert and tighten the 15 screws.
3. Reconnect the fingerprint/power button connector.
4. Insert the SIM tray.

Before installing the rear cover, check if the adhesive is still strong.
If not, apply B7000 glue or use a new back cover adhesive.

Secure the cover using bonding clips.
If you don’t have them, rubber bands work fine — just apply even pressure.

---

 Frequently Asked Questions

1. What causes the volume buttons to stop working on the Galaxy A15 5G?

Common causes include a damaged volume flex cable, water exposure, wear and tear, or accidental drops affecting the internal buttons.

2. Can I replace the volume button flex at home?

Yes! With the right tools and careful step-by-step guidance, you can replace the volume flex yourself using this repair guide.

3. Do I need to remove the motherboard to replace the volume flex?

You only need to lift the logic board slightly after removing its screw—full removal is not required.

4. Does replacing the volume button flex affect fingerprints or power button?

No. The volume button flex is separate. Just make sure the fingerprint/power connector is plugged back securely during reassembly.

5. Do I need new adhesive for the back cover?

If the original adhesive is weak, use B7000 glue or a new double-sided adhesive to ensure the back cover bonds properly.

---

All Done!

Your Galaxy A15 5G volume button flex replacement is complete.
