Samsung Galaxy S20 Ultra 5g Vibrator Motor Replacement Guide

If your Samsung Galaxy S20 Ultra 5G is experiencing issues like no vibration, inconsistent vibration feedback, it may be time to replace the vibrator motor. These component is located at the bottom of the device and require careful disassembly to access.

This guide walks you through the complete repair process, including safely removing the back cover, wireless pad, speaker cover, and internal components, replacing the faulty parts, and reassembling your phone.

---

Compatibility and Model Numbers

This repair guide based on Samsung Galaxy S20 Ultra 5G mobile phone, but it is also compatible with Galaxy S20 Ultra 4g version too.

Compatible Mode Numbers l SM-G988, SM-G988U, SM-G988U1, SM-G9880, SM-G988B/DS, SM-G988N, SM-G988B, SM-G988W SM-G988B/DS

Tools You Need

• Heating pad / heat gun / hairdryer
• Suction cup
• Plastic card pry tools / opening picks
• Phillips PH000 screwdriver
• Philips PH00 screwdriver – For smaller internal screws (optional)
• Adhesive (B7000 or double-sided back cover adhesive)
• Bonding clips or rubber bands (optional but recommended)

How to Find Tools and Parts

• Heating pad – https://amzn.to/3H0tHzJ
• Portable Heat Gun – https://amzn.to/4mszih1
• Clamps https://amzn.to/3GYJT4w
• STREBITO 142 Piece Repair Tool Kit https://amzn.to/3UO1jUx
• Glue | Adhesive https://amzn.to/46exVxe
• Compatible Parts https://amzn.to/47VYx7t
• Silicone Work Repair Mat https://amzn.to/45Emz5l

👉 How to Use the Heating Pad Properly

---

Step 1 – Power Off and Remove SIM Tray

Turn off the Galaxy S20 Ultra completely. Eject and remove the SIM tray to prevent accidental damage during the repair.

---

Step 2 – Heat and Remove Back Cover

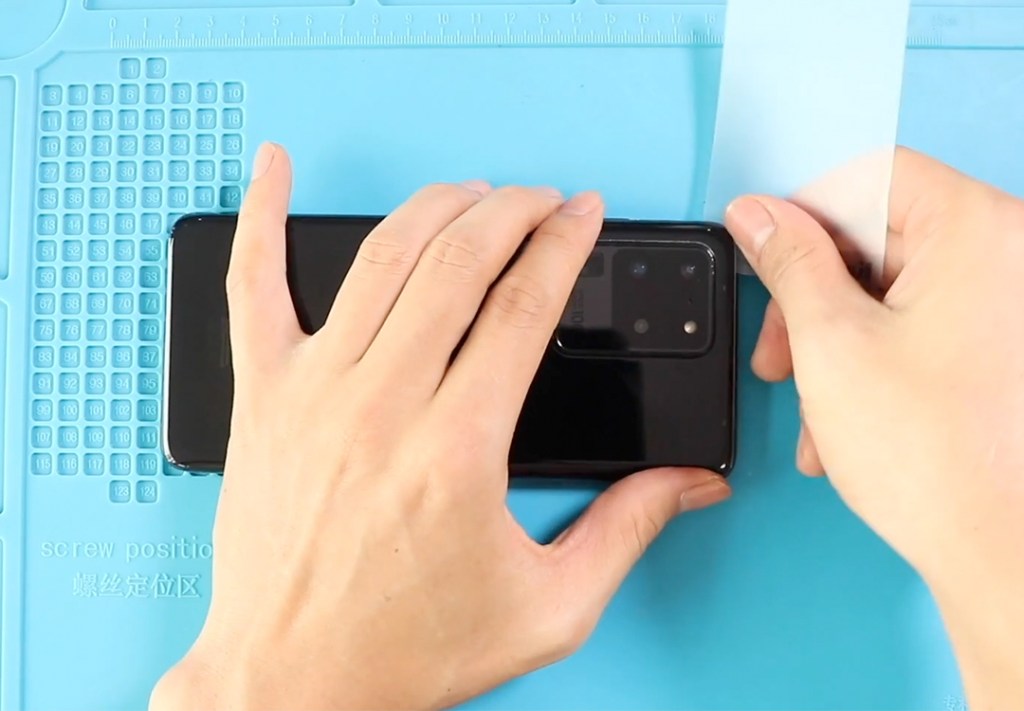

The back cover is secured with adhesive. Place the phone’s back side on a heating pad and select the mobile phone heating option. Alternatively, use a heat gun or hair dryer. Apply gentle, even heat around the edges until the adhesive softens.

Use a suction cup to create a small gap, then slide a plastic pry tool or card around the edges to separate the back cover. Lift the cover carefully.

---

Step 3 – Remove the Wireless Pad

Unscrew and disconnect the wireless charging pad from the connectors. Lift it out carefully.

---

Step 4 – Remove the Speaker Cover

Locate the bottom speaker cover. Unscrew the screws holding it in place and remove the cover to access the charging port board and vibrator motor.

---

Step 5 – Remove the Charging Port Board

Undo the screws securing the charging port board and disconnect its connectors. Carefully lift the board out of the device.

In This Step, Replace the Charging Port Board if the Phone Is Not Charging

---

Step 6 – Remove the Faulty Vibrator Motor

The vibrator motor sits next to the charging port board. Apply slight heat if needed, then carefully lift out the non-working motor using a plastic pry tool or tweezers.

---

Step 7 – Install the New Vibrator Motor

Place the new vibrator motor in the exact location of the old one. Ensure it sits securely and is properly aligned with the connector.

---

Step 8 – Reinstall the Charging Port Board

Place the charging port board back into position. Reconnect all flex cables and secure the board with its screws.

---

Step 9 – Reinstall the Speaker Cover

Place the speaker cover back over the bottom components and secure it with screws.

---

Step 10 – Reinstall the Wireless Pad

Position the wireless charging pad, reconnect its flex cable, and secure it with screws.

---

Step 11 – Seal the Back Cover

Before reinstalling the back cover, check that the adhesive is sufficient. If it is weak, apply B7000 glue or a new double-sided back cover adhesive.

Press the back cover firmly into place. Use screen binding clips or rubber bands to hold the cover until the adhesive sets.

---

Step 12 – Test the Device

Power on your Galaxy S20 Ultra and test both the vibrator motor and charging functionality to ensure everything works correctly.
