Samsung Galaxy Tab A8 10.5 (2021) Power & Volume Button Flex Replacement Guide
Samsung Galaxy Tab A8 10.5 (2021) Power & Volume Button Flex Replacement Guide
The power and volume button flex cable on the Samsung Galaxy Tab A8 10.5 (2021) controls essential hardware functions such as powering the tablet on/off, locking the screen, adjusting volume levels, and performing forced restarts. When this flex cable fails, the tablet may become difficult or impossible to use normally.
Common symptoms of a faulty power/volume flex include:
- Power button not responding
- Volume up or down not working
- Buttons working intermittently
- Tablet only powers on with charging cable
- Buttons feel normal but do nothing
This issue is usually caused by wear and tear, liquid damage, physical impact, or flex cable damage during previous repairs. In this Geardo DIY repair guide, we’ll show you how to replace the Power & Volume Button Flex safely on Samsung Galaxy Tab A8 10.5 X200, X205, and X207 models.
This is a complex repair that involves removing the LCD screen, speaker cover, board cover, and logic board. Work slowly and stay organized.
Repair Difficulty
Difficulty Rating: ⭐⭐⭐⭐⭐ (5 out of 5)
Estimated Time: 90–120 minutes
Repair Type: Power & Volume Button Flex Replacement
Skill Level: Advanced
⚠️ This repair requires full logic board removal. Incorrect handling can damage connectors or the motherboard.
Signs You Need a Power / Volume Button Flex Replacement
- Power button not working
- Volume buttons unresponsive
- Buttons work only at certain angles
- No click response despite physical press
- Buttons stop working after a drop or liquid exposure
Before You Begin
Compatibility and Model Numbers
This repair guide based on Samsung Galaxy Tab A8 10.5-inch 2021 X205 Model.
Also Compatible with Both Wifi and Cellular Edition models.
Model Numbers | SM-X200, SM-X205, SM-X207
Required Tools
- Heating pad / heat gun / hairdryer
- Suction cup
- Plastic card pry tools / opening picks/ Tweezers
- Phillips screwdriver #00 / #000
- Adhesive (B7000 or double-sided back cover adhesive)
- Bonding clips or rubber bands (optional but recommended)
Make sure the tablet is turned off and the SIM tray is removed (For Cellular Version)before starting.
How to Find Tools and Parts
- Heating pad – https://amzn.to/3H0tHzJ
- Portable Heat Gun – https://amzn.to/4mszih1
- Clamps https://amzn.to/3GYJT4w
- STREBITO 142 Piece Repair Tool Kit https://amzn.to/3UO1jUx
- Glue | Adhesive https://amzn.to/46exVxe
- Compatible Parts –
- Battery – https://amzn.to/4fC8rNj
- Touch Screen – https://amzn.to/416eZxY
- Other Parts – https://amzn.to/45jcN8G
- Silicone Work Repair Mat https://amzn.to/45Emz5l
Protect Your Galaxy Tab A8 10.5 2021
- Screen Protector Glass For The Screen https://amzn.to/4mMju9g
- Best Cases For Your Galaxy Tab https://amzn.to/4mdkovq
Step-by-Step Power & Volume Button Flex Replacement Guide
Step 1: Power Off the Tablet
Completely power off the Samsung Galaxy Tab A8 before starting the repair.
Step 2: Heat and Open the LCD Screen
- Apply gentle heat around the LCD screen edges to soften the adhesive
- Place the tablet screen-side down on a heating pad and select the tablet heating option
- Alternatively, use a heat gun or hairdryer evenly around the edges

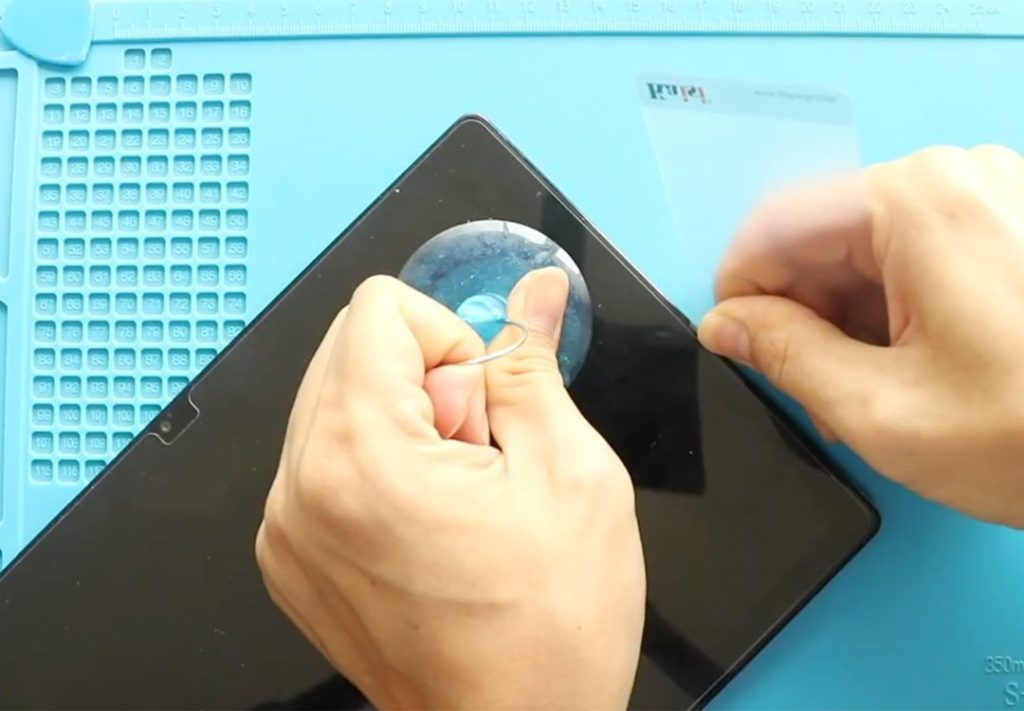

Step 3: Remove the LCD Screen
- Use a suction cup to create a small opening between the screen and frame
- Insert a plastic pry tool or card
- Carefully cut the adhesive around all edges
- Gently lift the LCD and slide it downward to rest on the body
Step 4: Disconnect Battery & LCD Connectors
- Disconnect the battery connector first to prevent short circuits
- Disconnect the LCD connector
- Carefully remove the LCD assembly and place it aside
Step 5: Remove the Speaker Cover
- Locate the speaker cover near the bottom of the tablet
- Remove all securing screws
- Carefully lift and remove the speaker cover
Step 6: Remove the Board Cover
- Locate the internal board cover protecting the logic board
- Remove the screws securing the cover
- Lift and remove the board cover carefully
Step 7: Remove the Logic Board
- Disconnect all flex cables connected to the logic board
- Remove any remaining screws securing the board
- Carefully lift the logic board out of the frame
- Place it on an anti-static surface
⚠️ Take photos before removing connectors to ensure correct reassembly.

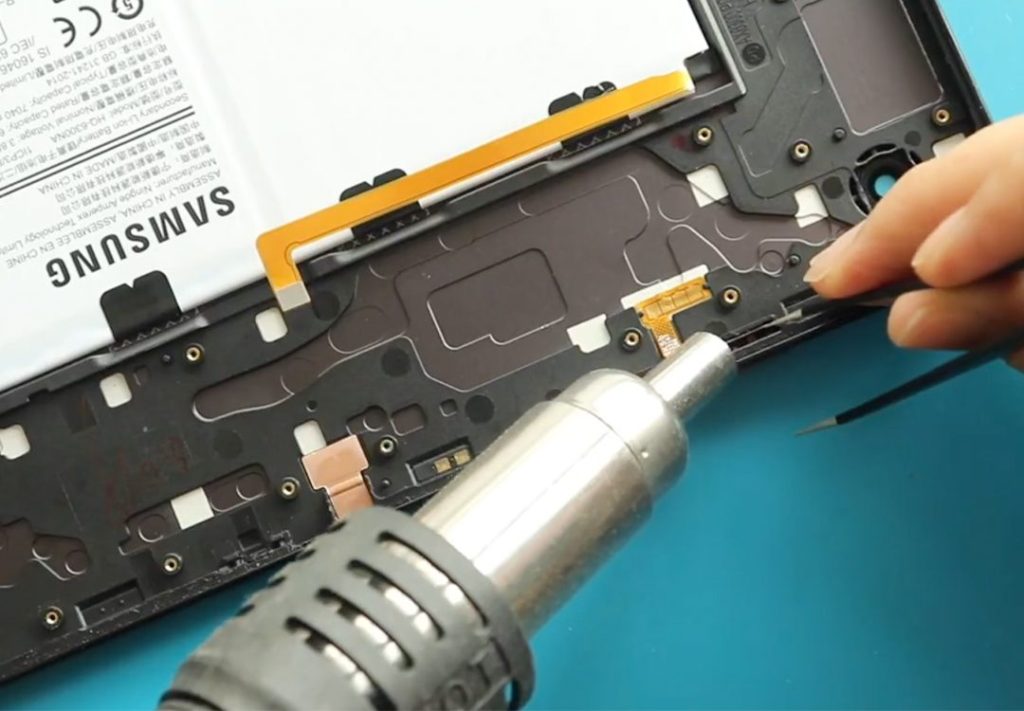

Step 8: Remove the Faulty Power & Volume Button Flex
- Locate the power/volume button flex cable along the tablet frame
- Carefully peel the flex cable from the housing
- Disconnect it completely from the tablet
Step 9: Install the New Power & Volume Button Flex
- Place the new flex cable into the same position
- Ensure proper alignment with the power and volume button cutouts
- Press gently to secure the adhesive side
- Route the cable exactly as the original
Step 10: Reinstall the Logic Board
- Place the logic board back into position
- Secure it with screws
- Reconnect all flex cables carefully
Step 11: Reinstall Board Cover and Speaker Cover
- Place the board cover and secure it with screws
- Reinstall the speaker cover and tighten all screws
Step 12: Reconnect LCD & Battery Connectors
- Reconnect the LCD connector
- Reconnect the battery connector
- Double-check all connections
Step 13: Test the Buttons
Before sealing the tablet:
- Power on the device
- Test Power button (lock/unlock, power off menu)
- Test Volume Up & Down buttons
- Confirm proper tactile response
Step 14: Reinstall the LCD Screen
- Apply B7000 glue or double-sided LCD adhesive around the frame
- Align the screen from the bottom first
- Press gently along all edges
Step 15: Final Closing
- Use bonding clips or rubber bands
- Leave the tablet undisturbed for 60–90 minutes to allow adhesive to cure
Frequently Asked Questions (FAQ)
Is the power and volume flex a single part?
Yes, both buttons are controlled by a single flex cable.
Will replacing this flex erase my data?
No, internal data is not affected.
Is soldering required?
No soldering is required.
What adhesive should I use for the screen?
B7000 glue or pre-cut double-sided LCD adhesive is recommended.
How long should I wait before using the tablet?
Wait at least 1–2 hours for the adhesive to fully cure.
Troubleshooting (After The Repair)
Q: Power button still doesn’t work after replacement. What should I check?
A: Recheck the power flex connector and ensure the logic board is seated correctly.
Q: Volume buttons work but power button doesn’t.
A: Make sure the flex cable is aligned properly with the power button actuator.
Q: Tablet doesn’t turn on after reassembly.
A: Confirm the battery connector is fully connected and the board connectors are secure.
Q: Buttons feel loose or don’t click.
A: Ensure the flex cable is positioned correctly under the physical buttons.
Final Thoughts
Replacing the Power & Volume Button Flex on the Samsung Galaxy Tab A8 10.5 (X200 / X205 / X207) is an advanced repair but can fully restore button functionality when done carefully. Proper organization and patience are key to success.
