Samsung Galaxy A30 Battery Replacement Guide | DIY Repair

Hi everyone, welcome back to Geardo. Today we will show you how to replace the battery on the Samsung Galaxy A30mobile phone. If your phone is draining quickly, shutting down unexpectedly, or no longer holding charge, replacing the battery can restore its performance.

This beginner-friendly guide will walk you step-by-step through the Samsung Galaxy A30 battery replacement process. The repair involves removing the back cover, disconnecting internal components, and safely installing a new battery.

Before starting, make sure you have the correct repair tools and a compatible replacement battery. Working slowly and carefully will help prevent damage to delicate components such as the fingerprint sensor cable and internal flex cables.

---

Reasons for Samsung Galaxy A30 Battery Replacement

You may need to replace the battery on your Samsung Galaxy A30 if you notice any of the following issues:

• Battery drains very quickly
• Phone shuts down even when charge remains
• Device overheats during normal use
• Battery swelling causing the back cover to lift
• Phone only works when connected to the charger
• Slow or inconsistent charging

Replacing the battery can significantly improve the phone’s performance and extend its lifespan.

---

Repair Difficulty

⭐⭐⭐☆☆ (3/5 – Moderate)

---

Before You Begin

Compatibility and Model Numbers

• Samsung Galaxy A30

This repair guide based on Samsung Galaxy A30 Model.

SM-A305F, SM-A305FN, SM-A305G, SM-A305GN, SM-A305YN, SM-A3050, SM-A305N, SM-A305GT

Tools Required

• Mobile phone heating pad or hairdryer/heat gun
• Plastic pry tool / card pry
• Suction cups
• Phillips #00/#000 screwdrivers
• Tweezers (for connectors)
• B7000 glue or double-sided adhesive (for back cover)
• Rubber bands or bonding clips to secure the back cover

Using proper tools reduces the risk of damaging the phone.

How to Find Tools and Parts

• Heating pad – https://amzn.to/3H0tHzJ
• Portable Heat Gun – https://amzn.to/4mszih1
• Clamps https://amzn.to/3GYJT4w
• STREBITO 142 Piece Repair Tool Kit https://amzn.to/3UO1jUx
• Glue | Adhesive https://amzn.to/46exVxe
• Compatible Parts –
  • Battery – https://amzn.to/4njJQiY
  • Screen – https://amzn.to/4m86PMR
  • Other Parts – https://amzn.to/483P1iC
• Silicone Work Repair Mat https://amzn.to/45Emz5l

---

Samsung Galaxy A30 Battery Replacement – Step-by-Step Guide

Step 1: Power Off the Device

First, turn off the Samsung Galaxy A30 completely. This prevents short circuits and protects internal components during the repair.

---

Step 2: Heat the Back Cover

To remove the back cover, gently heat around the rear cover edges until the adhesive becomes soft.

You can use:

• A heating pad
• A heat gun
• A hairdryer

Place the phone with the back cover facing the heating pad and allow it to heat until the adhesive loosens.

---

Step 3: Create an Opening

Once the heating is complete:

• Use a suction cup to create a small gap between the frame and the rear cover.
• Insert a plastic card pry tool into the gap.
• Carefully slide the tool around the edges to cut through the adhesive.

⚠️ Be gentle while removing the cover because the fingerprint sensor cable is attached to the back cover.

---

Step 4: Disconnect the Fingerprint Sensor

Slowly lift the back cover while holding the fingerprint button.

• Disconnect the fingerprint sensor flex cable.
• Fully remove the back cover and set it aside.

---

Step 5: Remove the Midframe

Next, remove the midframe assembly.

• Remove 13 screws from the top and bottom sections.
• Make sure the SIM tray is removed.
• Use a plastic pry tool to separate the midframe from the device.

Carefully work around the edges to release the plastic clips.

---

Step 6: Disconnect the Battery

Once the midframe is removed:

• Locate the battery connector.
• Use a plastic tool to disconnect the battery plug from the motherboard.

---

Step 7: Remove Flex Cables

Next, disconnect the following cables:

• Main ribbon flex cable
• LCD display flex cable

After disconnecting both cables, gently move them aside.

---

Step 8: Loosen the Battery Adhesive

The battery is secured with adhesive.

• Apply gentle heat to the battery area using a heat gun.
• This softens the adhesive underneath the battery.

---

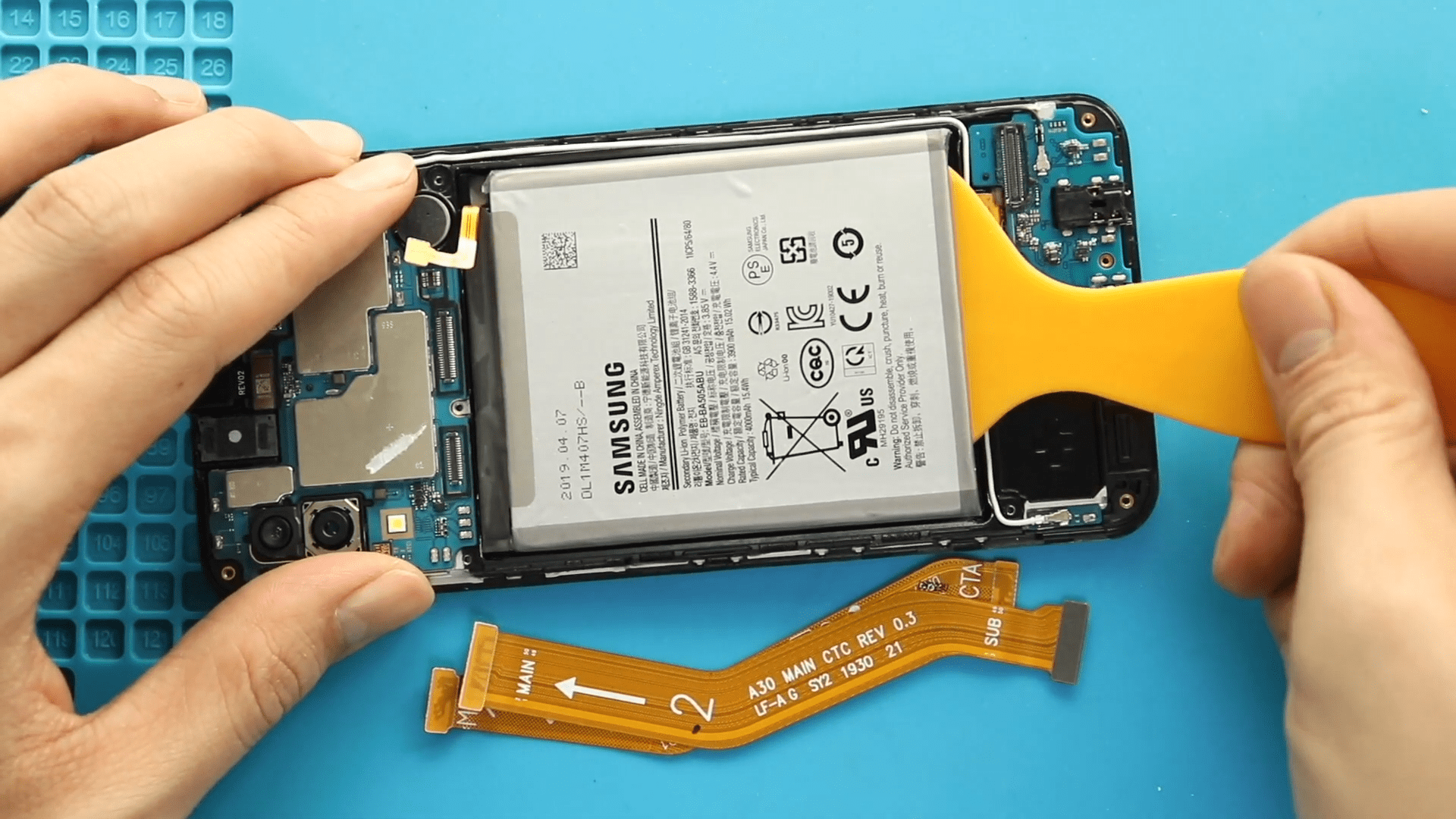

Step 9: Remove the Old Battery

Insert a plastic pry tool underneath the battery.

Carefully slide the tool to cut the adhesive and lift the battery out of the device.

⚠️ Do not bend or puncture the battery.

---

Step 10: Install the New Battery

Place the new battery into the battery compartment.

• Apply new adhesive or battery glue.
• Ensure the battery sits properly in the housing.

---

Step 11: Reconnect Flex Cables

Reconnect the following cables:

• Main ribbon flex cable
• LCD flex cable

Ensure both ends of the cables are securely connected.

---

Step 12: Reconnect the Battery

Now reconnect the battery plug to the motherboard.

Make sure the connection is secure before proceeding.

---

Step 13: Reinstall the Midframe

Place the midframe back onto the device.

• Ensure all clips snap into place.
• Reinstall the 13 screws to secure the frame.

---

Step 14: Reconnect the Fingerprint Sensor

Reconnect the fingerprint sensor cable and place the fingerprint button correctly into the back cover.

---

Step 15: Reattach the Back Cover

Before installing the rear cover:

• Check if the adhesive is still usable.
• If necessary, apply B7000 glue or new double-sided adhesive.

Place the back cover onto the phone and press firmly.

Use bonding clips or rubber bands to keep the cover tightly secured while the adhesive cures.

---

Frequently Asked Questions (FAQ)

1. How do I know if my Samsung Galaxy A30 battery needs replacement?

If the phone drains quickly, overheats, or shuts down randomly, the battery may be worn out and require replacement.

2. Can I replace the Samsung Galaxy A30 battery myself?

Yes. With the correct tools and careful handling, beginners can replace the battery using a detailed repair guide.

3. Is heating required to remove the back cover?

Yes. Heating softens the adhesive, making it easier and safer to remove the back cover without damage.

4. What type of adhesive should I use to reinstall the back cover?

You can use B7000 glue or double-sided smartphone adhesive tape.

5. Will replacing the battery improve phone performance?

Yes. A new battery can restore normal battery life and improve device reliability.

---

Troubleshooting After Battery Replacement

The phone does not turn on after replacing the battery

Make sure the battery connector is properly attached to the motherboard. Also verify that the new battery has some charge.

The phone is not charging

Check the main flex cable and charging port connection. Reopen the device and ensure all connectors are securely attached.

Fingerprint sensor not working

The fingerprint sensor cable may not be properly connected. Reopen the device and reconnect the fingerprint flex cable.

Back cover not sticking properly

Apply new adhesive or B7000 glue and use rubber bands or clamps to hold the cover in place until it dries.

---
