Samsung Galaxy A32 5G Battery Replacement Guide | M32 5g
Replacing the battery on your Samsung Galaxy A32 5G is one of the most effective ways to restore battery life, eliminate unexpected shutdowns, and improve overall device performance. Over time, lithium-ion batteries degrade due to charge cycles, heat exposure, and daily usage. If your device drains quickly, overheats, or shuts down randomly, a battery replacement can bring it back to life.
This detailed step-by-step repair guide is designed for DIY users who want a safe and successful battery replacement. Follow each step carefully and use proper tools to avoid internal damage.
Repair Difficulty
⭐⭐⭐☆☆ (3/5 – Moderate)
Estimated Time: 45–60 minutes
Type of Device: Android Smartphone
Type of Repair: Internal Battery Replacement
Reasons for Battery Replacement
- Battery drains very fast
- Phone shuts down randomly
- Device overheats during charging
- Battery swelling or back cover lifting
- Phone not charging properly
- Reduced screen-on time
Replacing the battery is significantly cheaper than buying a new phone and can extend the device’s lifespan by 1–2 years.
Before You Begin
Compatibility and Model Numbers
- Samsung Galaxy A32 5G
- Samsung Galaxy M32 5G
- Samsung Galaxy A32 – The Design is slightly different
This repair guide based on Samsung Galaxy A42 5G Model.
Model Numbers | SM-A326B, SM-A326B/DS, SM-A326BR/DS, SM-A326BR, SM-A326U, SM-A326W, SM-A326U1, SM-A326K, SCG08, SM-S326DL, SM-M326B, SM-M326B/DS
Tools Required
- Mobile phone heating pad or hairdryer/heat gun
- Plastic pry tool / card pry
- Suction cups
- Phillips #00/#000 screwdrivers
- Tweezers (for connectors)
- B7000 glue or double-sided adhesive (for back cover)
- Rubber bands or bonding clips to secure the back cover
Using proper tools reduces the risk of damaging the phone.
How to Find Tools and Parts
- Heating pad – https://amzn.to/3H0tHzJ
- Portable Heat Gun – https://amzn.to/4mszih1
- Clamps https://amzn.to/3GYJT4w
- STREBITO 142 Piece Repair Tool Kit https://amzn.to/3UO1jUx
- Glue | Adhesive https://amzn.to/46exVxe
- Compatible Parts –
- Battery – https://amzn.to/46batzW
- Screen – https://amzn.to/46b3uGY
- Other Parts – https://amzn.to/486qUjo
- Silicone Work Repair Mat https://amzn.to/45Emz5l
✅ Protect Your Galaxy A32 5G
- Best Rated Case https://amzn.to/4glZPek
- Protector For The Screen https://amzn.to/4nEKdFh
Step-by-Step Battery Replacement Guide
Step 1: Power Off the Device
Turn off the phone completely before starting the repair. This prevents short circuits and protects internal components.
Step 2: Heat the Back Cover
The rear cover is secured with adhesive.
Place the phone (back side down) on a heating pad and select the mobile heating option. Allow it to heat until the adhesive softens.
Alternatively, use a heat gun or hairdryer. Move heat evenly around the edges to avoid overheating one area.
Step 3: Remove the Back Cover
Attach a suction cup near the edge to create a small gap between the frame and back cover.
Insert a plastic card or pry tool into the gap and gently slide it around the edges to cut the adhesive.
Carefully lift off the back cover.
Step 4: Remove the Midframe
Unscrew the 15 Phillips screws located at the top and bottom sections of the midframe.
Remove the SIM tray before proceeding.
Disconnect the fingerprint sensor plug carefully.
Using a plastic pry tool, gently separate the midframe by releasing the plastic clips around the edges.
Step 5: Disconnect the Battery
Before removing the battery:
- Disconnect the battery connector.
- Disconnect the main ribbon (main flex cable).
This ensures there is no power flowing through the board during removal.

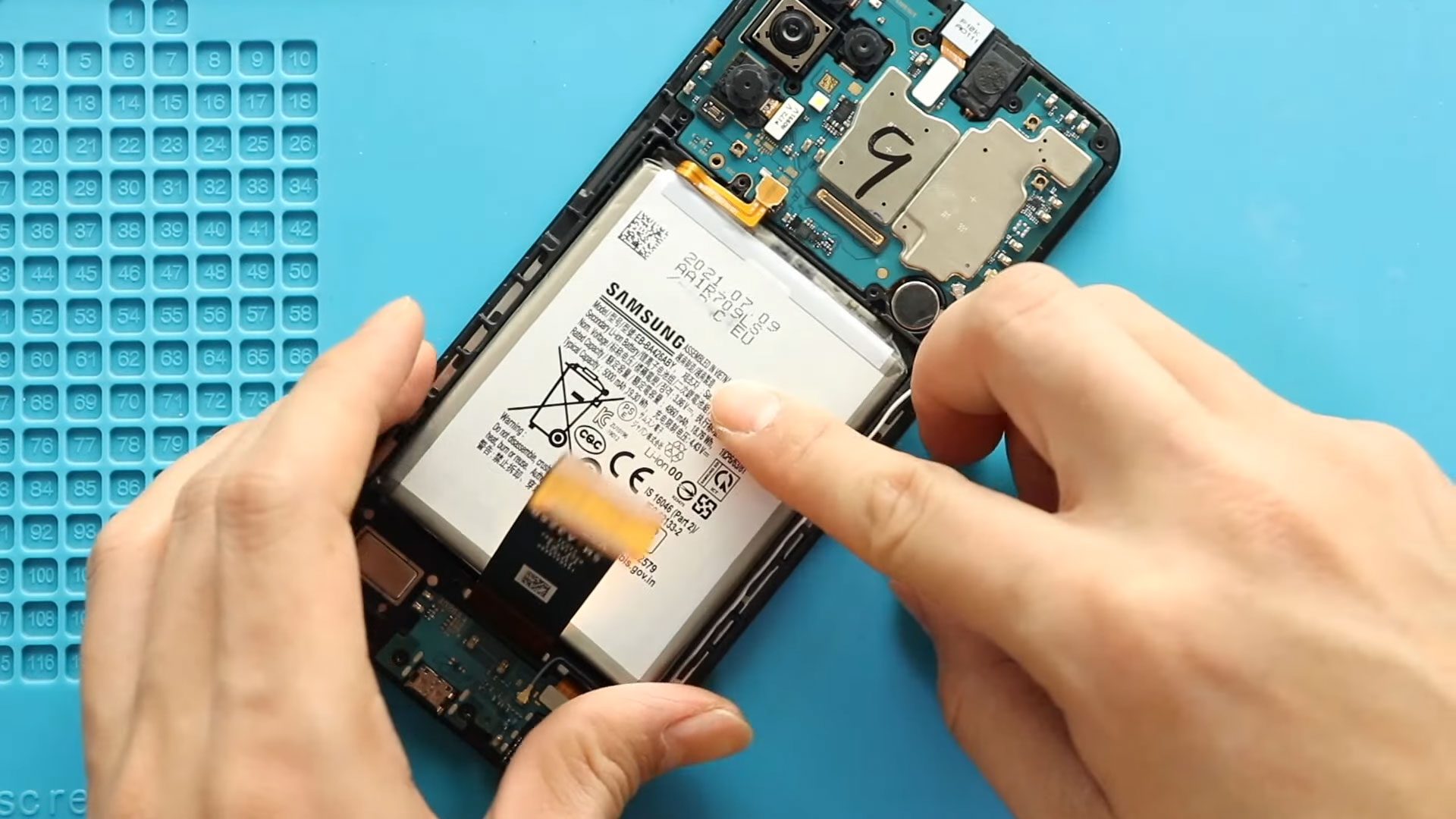

Step 6: Remove the Old Battery
The battery is glued to the frame.
Apply gentle heat to soften the adhesive underneath the battery.
Using a plastic pry tool, carefully lift the battery from one side and slowly work around to release it.
⚠️ Do not bend, puncture, or damage the battery.
Step 7: Install the New Battery
- Clean any remaining adhesive.
- Apply new battery adhesive.
- Position the new battery correctly.
- Reconnect the battery and main flex connectors.
Step 8: Reassemble the Device
- Reinstall the midframe and secure all 15 screws.
- Reconnect the fingerprint sensor.
- Ensure all connectors are properly secured.
- Apply adhesive to the back cover (use B7000 glue or pre-cut adhesive).
- Press the back cover into place.
- Use bonding clips or rubber bands for 30–60 minutes to secure adhesion.
Frequently Asked Questions (FAQ)
Q1: Does replacing the battery delete data?
No, battery replacement does not erase your data. However, it is always recommended to back up your device before repair.
Q2: Can I use a non-original battery?
Yes, but always choose a high-quality replacement battery to avoid overheating and charging issues.
Q3: Why is my phone still not charging after replacement?
Check if the battery connector and main flex cable are properly connected.
Q4: How long does a new Galaxy A32 5G battery last?
A new battery typically lasts 1–2 years depending on usage patterns.
Troubleshooting (After The Repair)
Phone Not Turning On After Repair
Possible Causes:
- Battery not connected properly
- Connector not fully clipped
- Battery defective
Solution:
Reopen the phone and reseat all connectors securely.
Back Cover Not Sticking Properly
Possible Causes:
- Old adhesive residue
- Insufficient glue
Solution:
Clean the surface properly and apply new B7000 glue or replacement adhesive.
Phone Overheating After Replacement
Possible Causes:
- Low-quality battery
- Short circuit due to improper installation
Solution:
Ensure battery is properly aligned and not compressed. Replace with a better-quality battery if needed.
If you have any questions about this repair, feel free to ask in the comments.
