DIY Samsung Galaxy A02S | M02s Charging Port Board Repair Guide

To start, we need the right tools to proceed with the repair, which You can find in the description.

First, turn off the phone, take out the SIM tray, and follow the back cover removal.

To remove the back cover, create a gap near the SIM slot or charger port using a picker or card pry tool. Insert the card pry tool and gently move around the phone to release the plastic clips on the frame.

Take out the back cover, and Take out the board cover by undoing eight screws.

Next, Unplug the battery connector.

Next, move to the bottom and undo eight screws to take out the cover.

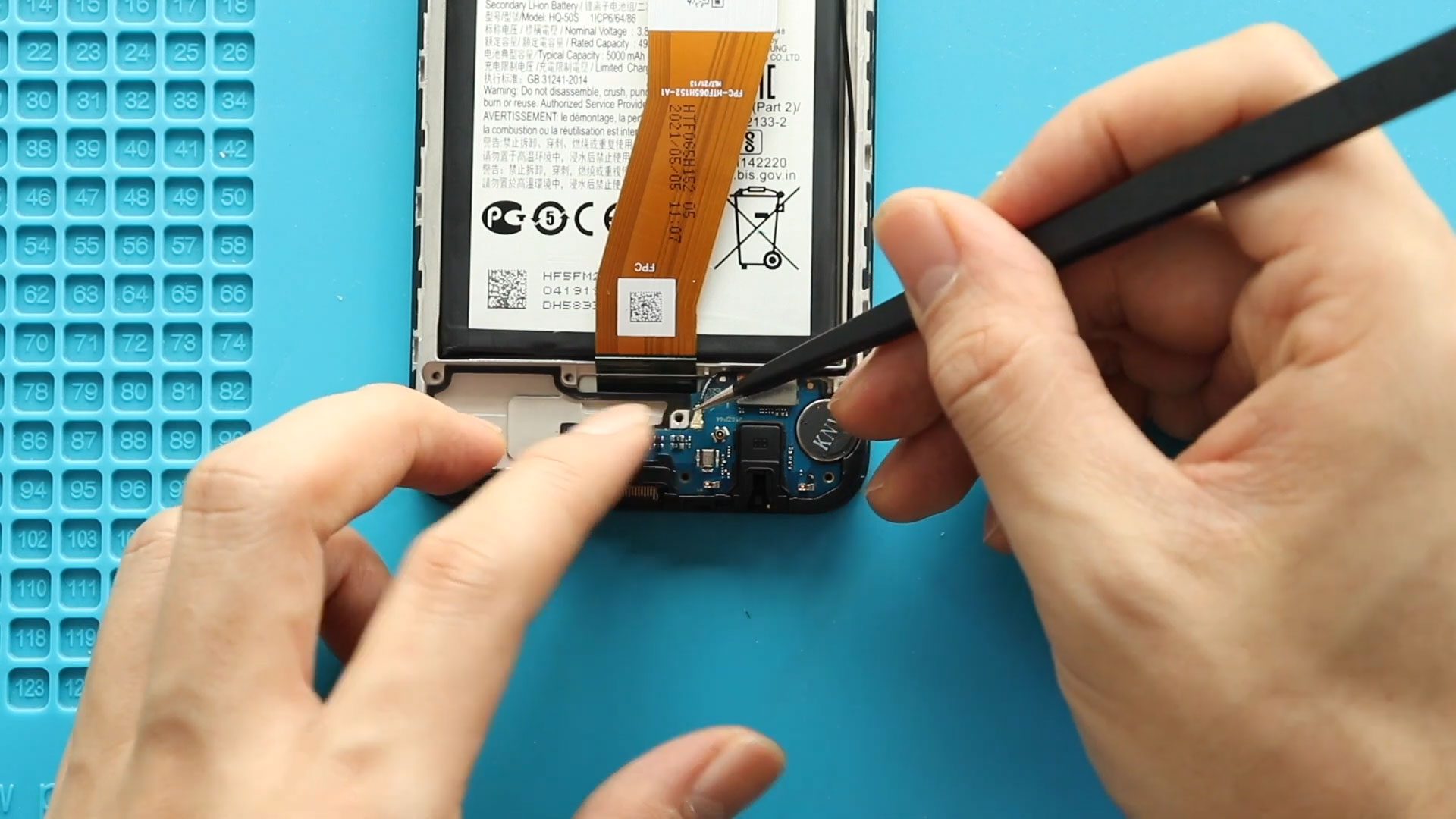

Next, take out the not-working charging port board by disconnecting the LCD plug and antenna head.

Next, place the new charging port board in the body and secure the antenna head and the LCD plug.

Next, place the cover by securing eight screws.

Next, secure the battery plug.

Next, place the board frame by adding eight screws.

Finally, Snap in the back cover and run through the sides to secure the clips. And Also, Do not forget to add the SIM tray.

I hope you have enjoyed the replacement guide on Galaxy A02s.

Let us know if you have any questions
