Samsung Galaxy A42 5G Earpiece Speaker Replacement Guide | M42 5G
If your Samsung Galaxy A42 5G has low call volume, distorted sound during calls, or you cannot hear the other person unless on speakerphone, the earpiece speaker may be faulty. Replacing the earpiece speaker can restore clear in-call audio without replacing the entire phone.
This detailed DIY guide explains how to replace the charging port board on the Samsung Galaxy A42 5G safely and correctly.
Repair Difficulty
- Device Type: Smartphone
- Type of Repair: Charging Port & Headphone Jack Board Replacement
- Repair Difficulty: 5/10 – Moderate
- Estimated Time: 45–60 Minutes
Reasons Why You May Need This Repair
- Your earpiece speaker may need replacement if:
- You hear very low volume during calls
- Sound is crackling or distorted
- No sound from the earpiece, but loudspeaker works fine
- Water/dust damage
- Speaker mesh clogged or damaged
- The phone was dropped, causing speaker failure
- Sound disappears intermittently due to loose contacts
If you experience any of these issues, replacing the earpiece is the best long-term solution.
Before You Begin
Compatibility and Model Numbers
- Samsung Galaxy A42 5G
- Samsung Galaxy M42 5G
This repair guide based on Samsung Galaxy A42 5G Model.
Model Numbers | SM-A426B, SM-A426B/DS, SM-A4260, SM-A426U, SM-A426U1, SM-A426N, SM-M426B, SM-M426B/DS
Tools Required
- Mobile phone heating pad or hairdryer/heat gun
- Plastic pry tool / card pry
- Suction cups
- Phillips #00/#000 screwdrivers
- Tweezers (for connectors)
- B7000 glue or double-sided adhesive (for back cover)
- Rubber bands or bonding clips to secure the back cover
Using proper tools reduces the risk of damaging the phone.
How to Find Tools and Parts
- Heating pad – https://amzn.to/3H0tHzJ
- Portable Heat Gun – https://amzn.to/4mszih1
- Clamps https://amzn.to/3GYJT4w
- STREBITO 142 Piece Repair Tool Kit https://amzn.to/3UO1jUx
- Glue | Adhesive https://amzn.to/46exVxe
- Compatible Parts –
- Battery – https://amzn.to/469eXqF
- Screen – https://amzn.to/48bD8XU
- Other Parts – https://amzn.to/4m0Ki4D
- Silicone Work Repair Mat https://amzn.to/45Emz5l
Protect Your Galaxy A42 5G
- Protector For The Screen https://amzn.to/4gbx7Nb
- Best Rated Case https://amzn.to/3JSjwyg
How to Replace Samsung Galaxy A42 5G Earpiece Speaker – Step by Step
Step 1. Open the Samsung Galaxy A42 5G
Begin by applying gentle heat to the back cover. This softens the adhesive and makes removal much safer.
Use a suction cup to create an opening, then slide a plastic pry tool around the edges to separate the adhesive.
Step 2. Remove the Back Cover
Carefully lift the back cover away from the frame. Avoid damaging the wireless charging coil integrated inside the cover.
Step 3. Remove the Mid-Frame
Unscrew and lift the mid-frame assembly. This gives access to the logic board and internal components.
Step 4. Remove the Logic Board
Unclip and lift the logic board gently. Handle it with care to avoid damaging ribbon cables underneath.
Set it aside safely.

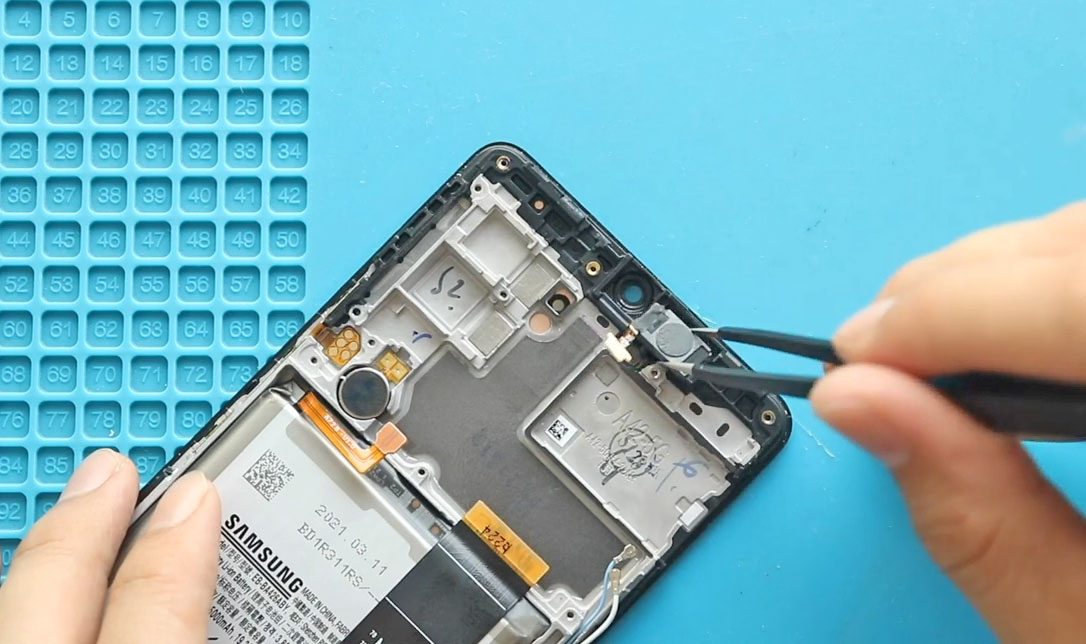

Step 5. Remove the Faulty Earpiece Speaker
Locate the earpiece module at the top.
Use a pry tool to lift and remove the non-working earpiece speaker. It may be lightly glued, so apply even pressure while removing it.
Step 6. Install the New Earpiece Speaker
Align the new speaker in the same position and press it firmly into its housing.
Make sure it sits flat and properly aligned for best sound quality.
Step 7. Reinstall the Logic Board
Place the logic board back into position and reconnect all required flex cables.
Step 8. Reinstall the Mid-Frame
Snap the mid-frame back in and secure all screws. Ensure the frame is properly aligned so components are not pinched.
Step 9. Install the Back Cover
Before placing the back cover, check adhesive strength.
If weak, apply B7000 glue or install a new back cover adhesive.
Step 10. Close and Bind the Back Cover
Press firmly around all edges for proper sealing.
Use rubber bands or binding clips for strong bonding and let it sit for a while.
Your earpiece speaker replacement is successfully completed!
FAQ (Frequently Asked Questions)
Q1: Why is my call volume still low after replacement?
Check if the speaker mesh is clogged from inside or the adhesive is obstructing the speaker opening. Also ensure the new earpiece is genuine.
Q2: Does replacing the earpiece affect water resistance?
Yes. Once opened, the original waterproofing is compromised. Proper adhesive helps but won’t restore factory-level sealing.
Q3: Is heating required to remove the back cover?
Yes, the adhesive is strong. Without heating, the cover may crack.
Q4: Will a non-OEM earpiece work?
It will work, but for best clarity and volume, OEM or high-quality components are recommended.
Q5: Do I need to disconnect the battery for the repair?
The battery connector sits under the mid-frame, so removing the mid-frame naturally disconnects it, ensuring safe handling.
Troubleshooting
Q1: Earpiece sound is distorted after replacement
- Check speaker alignment
- Make sure no tape or glue covers the speaker port
- Ensure the logic board is seated properly
Q2: No sound at all after replacement
- Verify all flex cables are firmly connected
- Recheck the speaker is correctly inserted
- Try restarting the device
Q3: Back cover not sealing properly
Add a thin layer of B7000 adhesive and clamp the cover for 30–60 minutes.
Q4: Proximity sensor not working after repair
This can happen if dust enters the sensor area.
Open again and clean the top frame and sensor window.
This completes your Samsung Galaxy A42 5G Earpiece Speaker replacement guide. Follow the steps carefully and your device should charge and function normally again. If you have questions, feel free to add them to your blog’s comment section.
