DIY OnePlus 7 Pro / 7T Pro Camera lens Glass & Back Cover Repair Guide

Before Starting, we need to have the right tools to proceed with the repair, which you can find in the description.

First, turn up the phone and take out the sim tray. And then followed by the back cover removal.

To remove the back cover, it needs to heat gently around the back cover edges until the pasted adhesive becomes soft.

For this, we are using a heating pad. Place the back cover side on the heating pad, select the mobile phone heating option, and leave it till it completes.

Alternatively, you can use a heat gun or hair dryer once the heating has completed use a suction cup to create an opening between the frame and the rear cover.

Next, insert a plastic car pry tool or something similar to cut the adhesive around the rear cover.

While taking off the rear cover, be gentle. The flash plug is attached to the back cover.

First, take off the shield and then disconnect the plug to take out the rear cover.

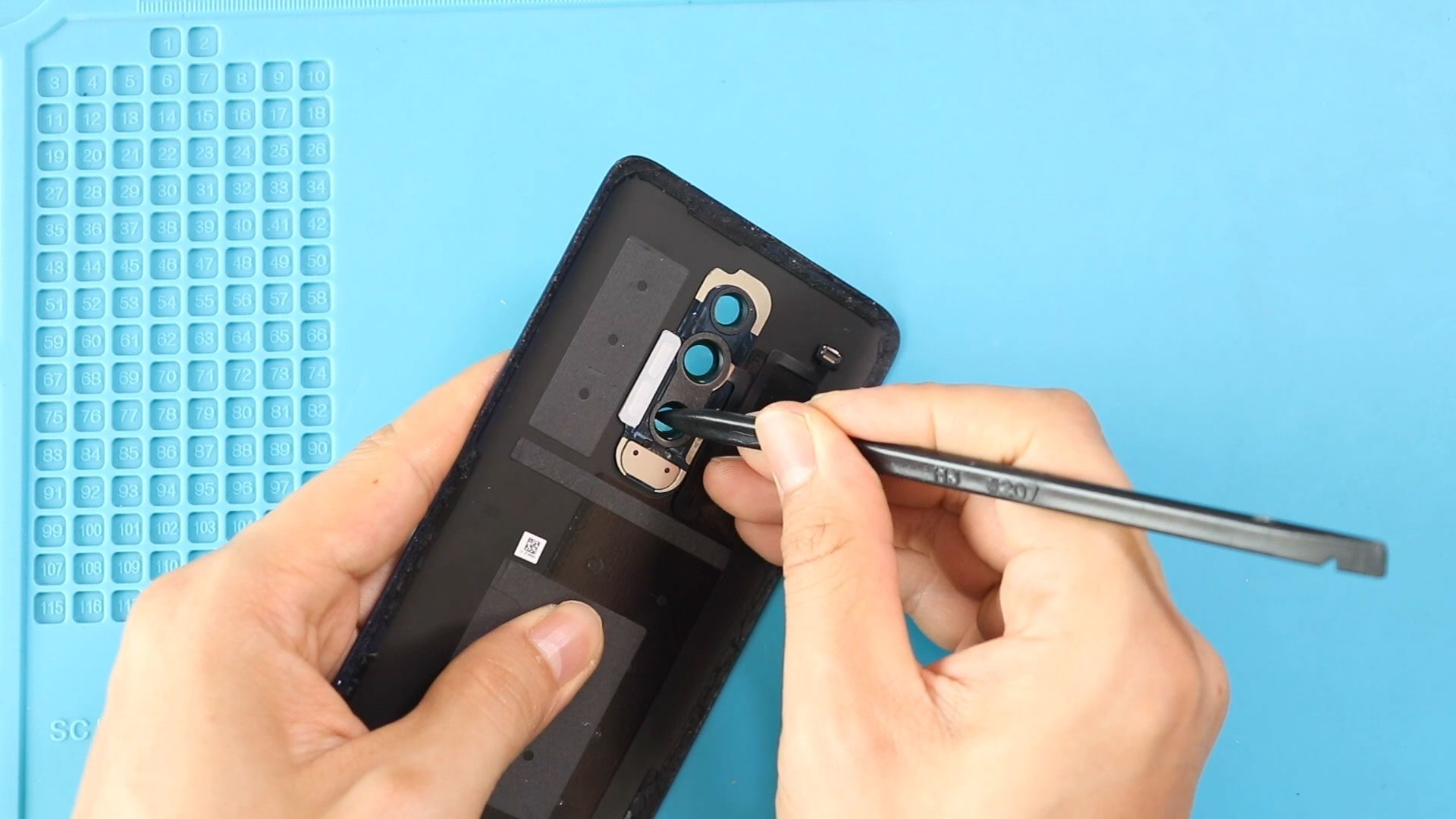

Next, on the rear cover front side applied heat to soften the camera in its glow and then gently applied pressure from behind to take out the camera lens.

Next, take the new camera lens and place it on the rear cover by applying glue around the lens edges. Most of the time, the replacement lens comes with adhesive. If not, you can use b7000 glue or double-sided tape.

Make sure the lens is seated and placed securely. Next, place the rear cover on the body, first secure the connector, then at the shield.

Next, before installing the main back cover, make sure it has enough glue on it. If not, use b7000 glue on your double-sided backup adhesive.

Finally, we added binding clips to time the rear cover with the body. If not, you can use some rubber bands and leave them for some time.

Hope you have enjoyed the replacement guide on oneplus 7 pro. Let us know if you have any questions.
