DIY Xiaomi Redmi 9A | 9i | Sport Charging Port Repair Guide

Before Starting, we need the right tools to proceed with the repair, which You can find in the description.

First, turn off the phone, remove the Sim tray, and follow the back cover removal.

To remove the back cover, create a gap near the sim slot or charger port using a picker or card pry tool. Insert the card pry tool and gently move around the phone to release the plastic clips on the frame.

Take out the back cover and remove the board cover by undoing eleven screws.

Next, disconnect the battery plug.

Next, take out the speaker cover by undoing eight screws.

Next, disconnect the secondary lcd plug and antenna head from the charging board.

Next, loosen the vibrator motor adhesive and undo the screw on the board.

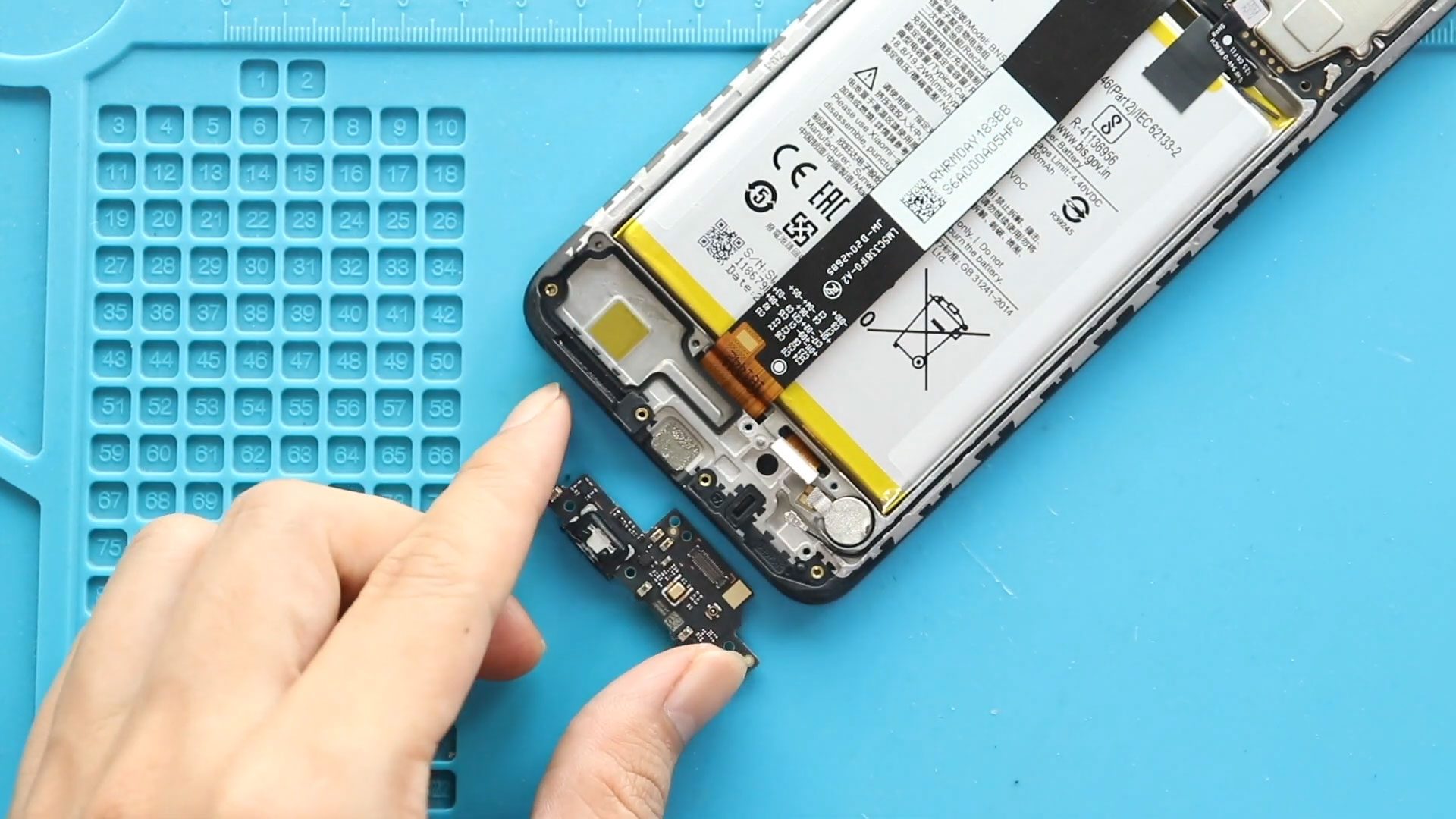

Next, take out the not working charging port board from the body.

Next, secure the new charging port board in the frame.

Next, secure the lcd plug, antenna head, and screw into the board.

Next, secure the speaker cover by adding eight screws.

Next, secure the battery plug.

Next, secure the board frame by adding eleven screws.

Finally, Snap in the back cover and run through the sides to secure the clips. And Also, Do not forget to add the sim tray.

I hope you have enjoyed the replacement guide on Redmi 9a mobile phone. Let us know if you have any questions.
