Google Pixel 4a Charging Port Flex Replacement Guide

Google Pixel 4a3 years ago282 Views

If your Google Pixel 4a is no longer charging properly, the charging port flex may be faulty and need replacement. Accessing the charging port requires opening the phone and removing the LCD screen, mid-frame, logic board bracket, camera, headphone jack, speaker, antenna connections, and logic board.

This guide explains the Google Pixel 4a charging port flex replacement process from start to finish, including safely removing the display, replacing the faulty charging port flex, testing the repair, and reinstalling the screen.

Repair Information

Repair InformationDetails
DeviceGoogle Pixel 4a
Repair TypeCharging Port Flex Replacement
Repair Difficulty★★★★☆
Estimated Time45–60 minutes

Reasons for the Repair

A damaged or non-working charging port flex can prevent the Google Pixel 4a from charging correctly. When the charging port is no longer functioning, replacing the flex provides a way to restore the charging connection.

Because the charging port flex is located beneath the logic board, this repair involves substantial disassembly of the phone.

Before You Begin

Compatibility and Model Numbers

This repair guide based on Google Pixel 4A

Model Numbers | G025J, GA02099, G025N

Tools Required

  • Mobile phone heating pad or hairdryer/heat gun
  • Plastic pry tool / card pry
  • Suction cups
  • Torx T3 screwdriver
  • Torx T4 screwdriver
  • Torx T5 screwdriver
  • Tweezers (for connectors)
  • B7000 glue or double-sided adhesive (for back cover)
  • Rubber bands or bonding clips to secure the back cover

How to Find Tools and Parts

Step-by-Step Google Pixel 4a Charging Port Flex Replacement

Step 1: Prepare the Phone and Tools

Start by gathering the required repair tools and the replacement charging port flex.

Having everything ready before opening the Google Pixel 4a will make the repair easier to manage and help keep the removed components organized.


Step 2: Heat and Remove the LCD Screen

The first major step is removing the LCD screen from the front of the phone.

Important: Heat the screen gently around its edges until the adhesive becomes soft. Avoid applying excessive heat.

For this repair, place the phone with the front screen side on a heating pad. Select the mobile phone heating option and allow the heating cycle to complete. Alternatively, a heat gun or hairdryer can be used.

Once the adhesive has softened, use a suction cup to lift the screen slightly. Insert a plastic card pry tool or something similar around the edges and carefully cut through the adhesive.

Work gradually around the screen rather than forcing it away from the body.


Step 3: Disconnect and Remove the LCD Screen

Gradually lift the LCD screen to approximately a 90-degree angle from the top and keep it steady.

The LCD connector bracket is secured with two screws. Undo these two screws and remove the bracket.

Next, disconnect the LCD connector to free the screen from the phone body.

Set the display aside safely while continuing with the internal disassembly.


Step 4: Eject the SIM Tray

Before removing the mid-frame, eject the SIM tray from the Google Pixel 4a.

Keep the tray in a safe place so it can be reinstalled during reassembly.


Step 5: Remove the Mid-Frame Screws

Undo the eight screws securing the mid-frame plate.

Keep the screws organized for use during the reassembly process.


Step 6: Separate the Mid-Frame from the Housing

Use a plastic card pry tool or triangle picker between the back housing and the mid-frame plate.

Run the tool through the gap to release the clips connecting the two sections.

Important: Be gentle around the flex cables while separating the back cover housing. Avoid pulling or putting unnecessary pressure on the cables.

Once the clips have been released, place the back cover on a suitable surface and carefully position the mid-frame body on the housing.

Do not force the phone or cables during this process.

[INTERNAL LINK: Related repair guide]


Step 7: Remove the Logic Board Bracket

Remove the logic board bracket by undoing its seven screws.

Important: Be gentle with the flex cables while loosening and removing the bracket.

Once the screws are removed, take out the bracket and set it aside for reinstallation.


Step 8: Disconnect the Battery and Other Connections

Disconnect the battery plug from the board.

Next, disconnect the fingerprint button and flash sensor plugs from the board to release the back cover from the body.

Handle these connections carefully while separating the components.


Step 9: Remove the Front Camera and Headphone Jack

Disconnect and pull out the front camera.

Next, disconnect and remove the headphone jack.

Keep both components safely aside because they will be reinstalled after the charging port replacement.


Step 10: Remove the Speaker

Remove the speaker by undoing its two screws and loosening the adhesive.

Important: The antenna board may still be attached to the speaker. Pull the speaker gently, separate the antenna board if necessary, and then remove the speaker.


Step 11: Disconnect and Remove the Logic Board

Disconnect the antenna head and its plug from the logic board.

Next, gently loosen the clip and lift the logic board from the phone.

Important: Be careful with the flex cables while lifting the logic board. Avoid unnecessary pressure or pulling.

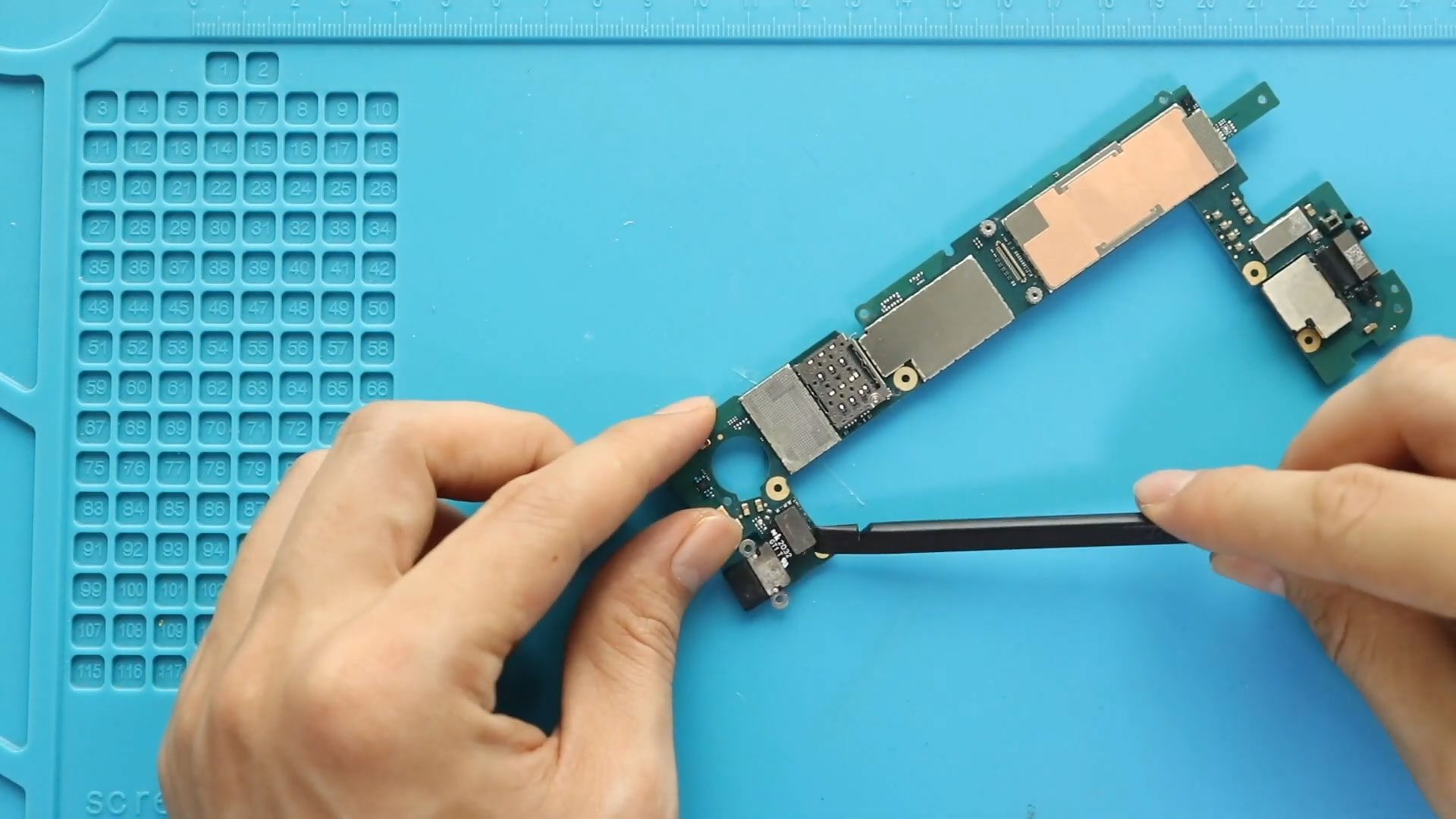

Once the board has been removed, flip it over to access the charging port flex.


Step 12: Remove the Faulty Charging Port Flex

Flip the logic board and locate the non-working charging port flex.

Disconnect the faulty charging port flex and remove it from the board.

Make sure the old charging port flex has been completely removed before installing the replacement.


Step 13: Install the New Charging Port Flex

Place the new Google Pixel 4a charging port flex onto the board.

Make sure it is positioned correctly before continuing with the reassembly.


Step 14: Reinstall the Logic Board

Gently place the logic board back onto the phone body.

Secure the logic board using the three screws specified in the repair procedure.

Make sure the board is properly positioned before continuing with the surrounding components.


Step 15: Reconnect the Antenna

Secure the antenna head and reconnect its plug to the logic board.

Check that the connection is properly seated before moving on to the speaker installation.


Step 16: Reinstall the Speaker

Place the speaker back into position.

Secure the speaker using the two screws removed earlier.

Once the speaker is secured, continue with the headphone jack and front camera.


Step 17: Reinstall the Headphone Jack and Front Camera

Secure the headphone jack back into position.

Next, reconnect the front camera.

Make sure both components are correctly positioned before continuing with the remaining reassembly.


Step 18: Reconnect the Fingerprint and Sensor Plugs

Maintain the back housing at approximately a 90-degree angle.

Reconnect the fingerprint button and flash sensor plugs to the board.

Handle the flex connections carefully while reconnecting them.


Step 19: Reconnect the Battery

Secure the battery plug back onto the board.

Once the battery connection is restored, the logic board bracket can be reinstalled.


Step 20: Reinstall the Logic Board Bracket

Place the logic board bracket back into position.

Secure the bracket using the seven screws removed earlier.

Make sure the bracket is correctly positioned before reinstalling the mid-frame.


Step 21: Reinstall the Mid-Frame

Starting from the top, gently slide the mid-frame body onto the housing and continue toward the bottom.

Once it is correctly aligned, gently press the frame to fasten the clips between the body and housing.

Important: Do not force the frame into place. If it does not sit correctly, check its alignment before applying additional pressure.


Step 22: Reinstall the SIM Tray and Mid-Frame Screws

Insert the SIM tray back into the phone.

Next, secure the mid-frame plate using the screws specified in the repair procedure.

Make sure the mid-frame is seated correctly before moving on to the LCD connection.


Step 23: Reconnect the LCD Screen

Place and connect the LCD screen plug to the logic board.

Reinstall the LCD connector bracket and secure it with the two screws.

Once the display connection has been restored, the phone can be turned on for verification and testing.


Step 24: Test the Google Pixel 4a

Turn on the device and verify the repair before permanently installing the LCD screen.

Important: Testing at this stage allows you to check the phone before sealing the display back onto the body.

Verify that the charging port is functioning correctly along with the basic operation of the device.


Step 25: Prepare the LCD Adhesive

Before installing the LCD screen, check whether there is enough adhesive remaining around the screen.

If the existing adhesive is insufficient, use B7000 glue or new double-sided LCD adhesive.


Step 26: Reinstall and Secure the LCD Screen

Gently slide the LCD screen into position, starting from the bottom and then moving toward the top.

Once the display is correctly aligned, apply slight pressure around the screen edges to help secure it.

Finally, use bonding clips to fasten the LCD screen to the body. Leave the clips in place for some time before removing them.

If bonding clips are not available, rubber bands can be used to tighten the screen against the body while the adhesive sets.

End of Repair Guide

The Google Pixel 4a charging port flex replacement is now complete. After the LCD adhesive has been secured, test the charging port again and confirm that the phone is functioning normally.


Frequently Asked Questions

1. What are the signs that the Google Pixel 4a charging port flex needs replacement?

A non-working charging port is a primary reason to replace the charging port flex. If the charging connection has stopped functioning, the flex may need to be replaced.

2. Why does the LCD screen need to be removed?

The charging port flex is located deep inside the Google Pixel 4a. Removing the LCD provides access to the mid-frame and internal components that must be removed before reaching the charging port flex.

3. Why is heat used when removing the LCD?

Heat softens the adhesive around the screen edges, allowing the display to be separated more easily from the phone body.

4. Why should I disconnect the battery during the repair?

The procedure disconnects the battery before continuing with the internal component removal and logic board work.

5. When should I test the phone?

The repair procedure calls for testing after reconnecting the LCD and before permanently securing the screen with adhesive.

6. What can I use if the original LCD adhesive is not sufficient?

The procedure specifies B7000 glue or new double-sided LCD adhesive for securing the display.


Troubleshooting

1. The LCD is difficult to remove. What should I check?

Make sure the adhesive has been heated sufficiently to soften it. Work gradually with the suction cup and plastic card pry tool instead of forcing the display.

2. The mid-frame will not separate from the housing.

Check that the mid-frame screws have been removed. Then carefully work a plastic card pry tool or triangle picker between the housing and mid-frame to release the clips.

3. The replacement charging port flex does not work after installation.

Review the charging port flex installation and the logic board reassembly. Make sure the replacement flex is correctly positioned and the board has been properly reinstalled.

4. The LCD does not work during testing.

Check the LCD connector and connector bracket. Make sure the LCD plug is correctly connected and the bracket is secured with its two screws.

5. The screen does not stay attached after reassembly.

Check whether enough adhesive remains around the screen. If necessary, use B7000 glue or new double-sided LCD adhesive, then use bonding clips or rubber bands to hold the display in place while the adhesive sets.
