Microsoft Surface GO 2 Battery Replacement Guide | DIY Repair
If your tablet drains quickly, shuts down unexpectedly, or refuses to charge properly, replacing the battery can restore performance and extend the life of your device. In this detailed repair guide, we will walk you through how to safely replace the battery on the Microsoft Surface Go 2 tablet using professional repair methods.
Battery replacement on tablets requires patience because the display assembly is strongly glued to the frame. Proper heating and careful handling are essential to avoid damaging delicate flex cables and internal components. Follow each step carefully for a successful repair.
✅ Protect Your Surface GO 2 Tablet
- Best Picked Charging Cable https://amzn.to/3J5IY2J
- Top Rated Surface Case https://amzn.to/45RA7cC
- Premium Tempered Glass https://amzn.to/4mqpEvQ
Repair Overview
Device Type: Tablet
Device Model: Microsoft Surface Go 2
Type of Repair: Battery Replacement
⭐⭐⭐⭐☆ (4 / 5 — Advanced Repair)
⏱ Estimated Repair Time 90 — 120 Minutes
Reasons for Battery Replacement
You may need to replace the battery if you notice:
- Battery draining very fast
- Tablet shutting down randomly
- Device overheating during charging
- Battery swelling or screen lifting
- Tablet not powering on without charger
- Charging percentage stuck or inaccurate
Before You Begin
Compatibility and Model Numbers
- Microsoft Surface Go 2
- Microsoft Surface GO 2nd Generation
This repair guide based on Microsoft Surface Go 2 Tablet
Compatible Mode Numbers : 1901, 1926, 1927
Tools You Need
- Heating pad / heat gun / hairdryer
- Suction cup
- Plastic card pry tools / opening picks
- Phillips #000 / #00 screwdriver
- Torx T3, T4, T5 Screwdriver
- Tri-Point Y0 / Y000 Screwdriver – Occasionally for specialized internal screws.
- Adhesive (B7000 or double-sided frame adhesive)
- Bonding clips or rubber bands (optional but recommended)
How to Find Tools and Parts
- Heating pad – https://amzn.to/3H0tHzJ
- Portable Heat Gun – https://amzn.to/4mszih1
- Clamps https://amzn.to/3GYJT4w
- STREBITO 142 Piece Repair Tool Kit https://amzn.to/3UO1jUx
- Glue | Adhesive https://amzn.to/46exVxe
- Compatible Parts –
- Battery – https://amzn.to/41Xg6QE
- Screen – ttps://amzn.to/41m85EM
- Other Parts – https://amzn.to/4oXYoGW
- Silicone Work Repair Mat https://amzn.to/45Emz5l
Using proper tools reduces the risk of damaging the phone.
Step-by-Step Microsoft Surface Go 2 Battery Replacement
Step 1 — Remove SIM Tray (If Installed)
Start by removing the SIM tray if your tablet variant includes cellular connectivity.
Step 2 — Heat the Front Display
Proper heating is the most important part of this repair.
Place the tablet front side down on a heating pad designed for tablets or mobile phones.
Select the tablet heating option and allow the heating cycle to complete.
Alternatively, you may use a heat gun or hair dryer to soften the adhesive around the screen edges.
Step 3 — Lift the Screen
Attach a suction cup near the edge of the display and gently lift.
Insert a plastic pry card or triangle pick between the frame and display.
Carefully cut through the adhesive around the edges.
⚠️ Work slowly because flex cables are connected to the logic board.
Step 4 — Open the Display Assembly
Once adhesive separation is complete:
- Slowly lift the screen.
- Move the screen upward on your work table without pulling the cables.
Step 5 — Disconnect Battery Connector
Remove the two screws securing the battery connector.
Disconnect the battery from the motherboard to prevent electrical damage.
Step 6 — Flip the LCD Screen Assembly
Carefully flip the LCD assembly to access the internal connectors.
Remove the connector bracket securing the display cable.
Lift the connector lever and disconnect the LCD cable.
Now remove the display assembly completely from the tablet body.
Step 7 — Clean Adhesive Residue
Remove any leftover adhesive around the frame edges.
Cleaning helps ensure proper sealing during reassembly.
Step 8 — Heat the Rear Housing
To remove the battery safely:
Place the tablet rear side on the heating pad.
Apply enough heat to soften the battery adhesive.

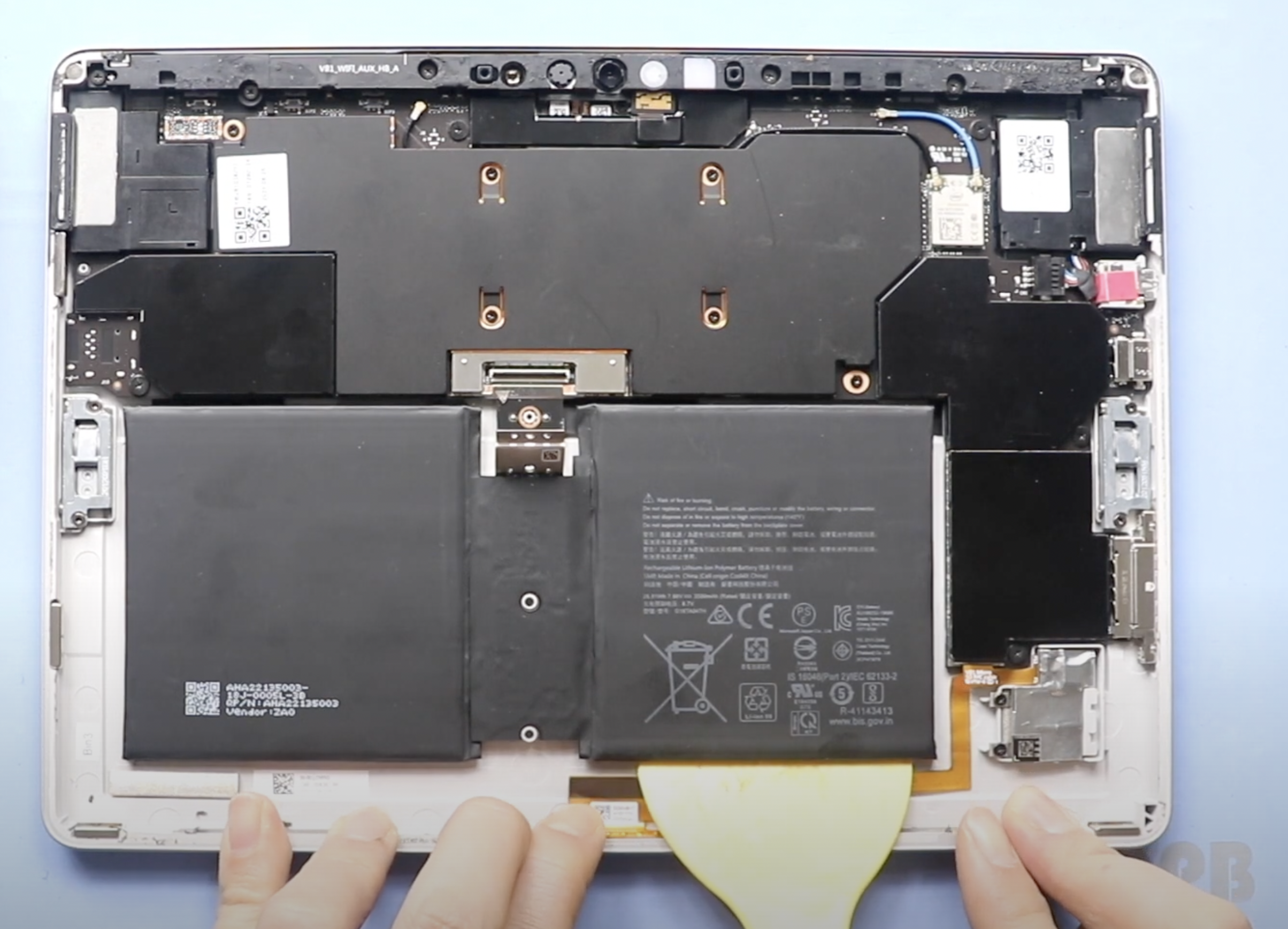

Step 9 — Remove the Old Battery
Using a plastic pry tool:
- Slowly work underneath the battery.
- Gently pry it upward.
This process takes time. Avoid bending or puncturing the battery.
Remove the faulty battery completely.
Step 10 — Prepare Battery Area
Clean adhesive residue if necessary.
Ensure the battery compartment surface is smooth and dust-free.
Step 11 — Install the New Battery
Place adhesive strips inside the battery compartment.
Install the replacement battery and press gently to secure it.
Step 12 — Reconnect Display
Reconnect the LCD connector to the motherboard.
Install the connector bracket securely.
Reconnect the battery connector and secure it using two screws.
Step 13 — Test the Device
Power on the tablet before sealing the display.
Check:
- Screen display
- Touch functionality
- Charging response
Testing now prevents reopening the device later.
Step 14 — Seal the Screen
Apply new adhesive or tablet glue along the frame edges.
Slide the screen into position from bottom to top.
Press gently around the edges to secure.
Add rubber bands or binding clips around the tablet frame.
Leave it for some time to allow proper bonding.
Remove clips once adhesive has cured.
Frequently Asked Questions (FAQ)
Q1. Is Microsoft Surface Go 2 battery replacement difficult?
Yes. Because the display is strongly glued and internal cables are delicate, this repair is considered advanced level.
Q2. Can I replace the battery without removing the screen?
No. The internal battery is located beneath the display assembly and requires screen removal.
Q3. What happens if I use too much heat?
Excessive heat can damage the LCD panel or internal components. Always apply controlled and even heating.
Q4. Should I replace adhesive after opening the tablet?
Yes. New adhesive ensures proper sealing and prevents dust entry.
Q5. How long does a new battery last?
A quality replacement battery typically lasts 2–3 years depending on usage habits.
Troubleshooting After Battery Replacement
Q1. Tablet does not power on after repair. What should I check?
Make sure the battery connector is properly secured and the LCD connector is fully seated.
Q2. Touch screen not working after assembly?
Reconnect the LCD flex cable and ensure the locking lever is properly closed.
Q3. Screen lifting after repair?
This usually happens due to weak adhesive or insufficient curing time. Reapply adhesive and clamp again.
Q4. Tablet charging slowly after battery replacement?
Check the charging port and cable. Also verify battery connector alignment.
